Product type：Graphic LCD Module
Show contents：160x32
Outline size(mm) ：116.0x35.0x13.6
Size of View Window(mm)：83.0x18.6
Display size(mm) ：80.0x15.9
Point spacing(mm)：0.50x0.50
Product application：Instruments
Visual angle：6H
Backlight type or brightness：YG
Connection PIN Number：16PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：ST7565R

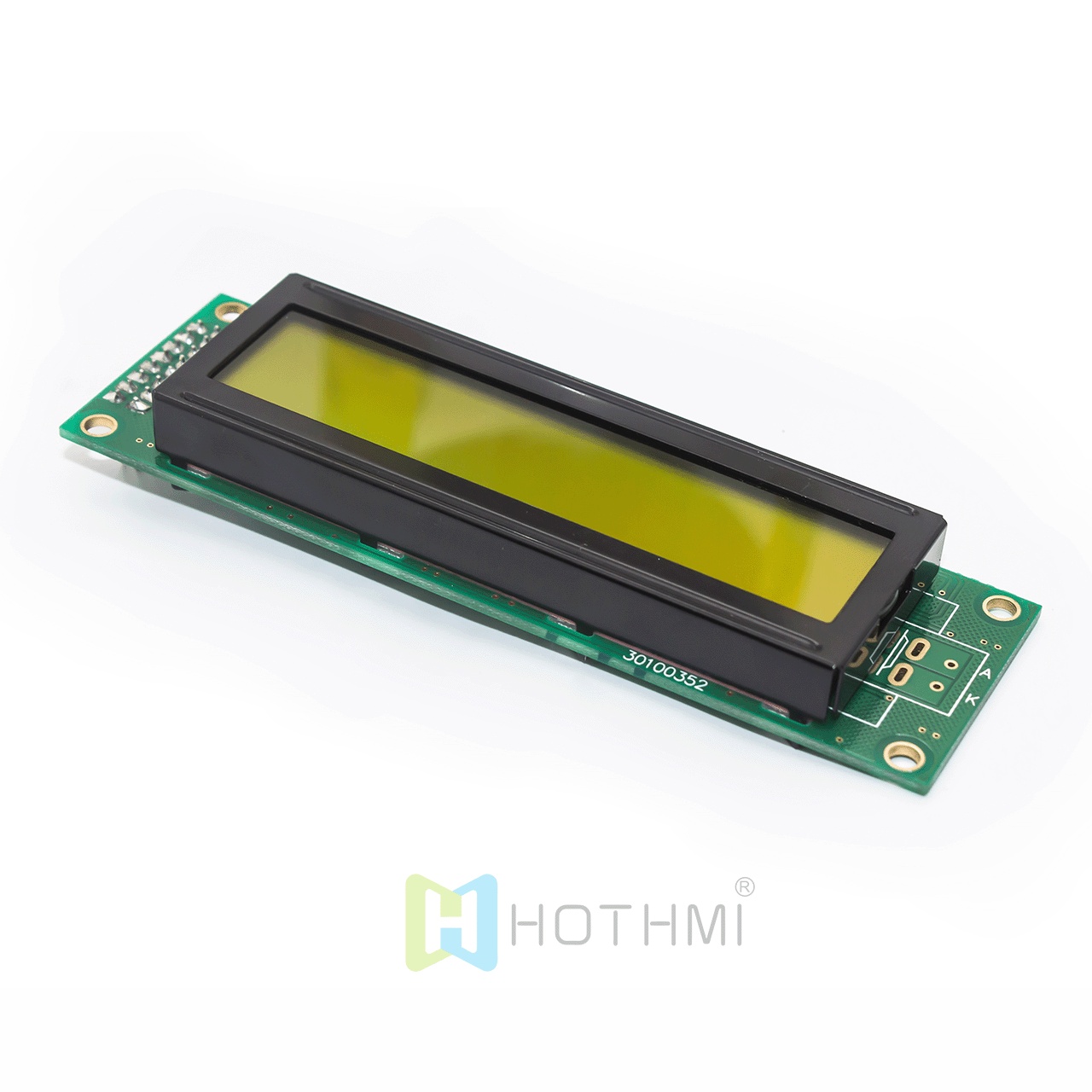

The 3.4" 160x32LCD Graphic Dot Matrix Module displays deep black pixels on a bright yellow-green background. This transflective LCD display is engineered to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD has a strong built-in backlight that provides high contrast and displays clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This graphic LCD display module has a built-in positive voltage. It is also fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications. It operates exceptionally well when used in a temperature range of -20 to 70 degrees Celsius. This LCD has an optimal viewing angle of 6:00, operates at 5V, and is RoHS compliant.
