  • Model : 4.3 inch TFT horizontal screen | 800x480 resolution | IPS full viewing angle | Capacitive touch screen | TFT-H043A10SVIST5C40

    Product type:TFT LCD

    Show contents:800x480

    Outline size(mm) :105.5x67.2x4.55

    Size of View Window(mm):4.3

    Display size(mm) :4.3

    Effective size(mm):95.04x53.85

    Product application:Vehicle, medical, industrial control

    Visual angle:Full view

    Backlight type or brightness:1000cd/m2

    Connection PIN Number:FPC

    Interface mode:RGB

    Special instructions:TTL18bit/24bit

    Working temperature:-30~80℃

    Power supply voltage:3.3v

    Driver chip model:ST7262

Product description

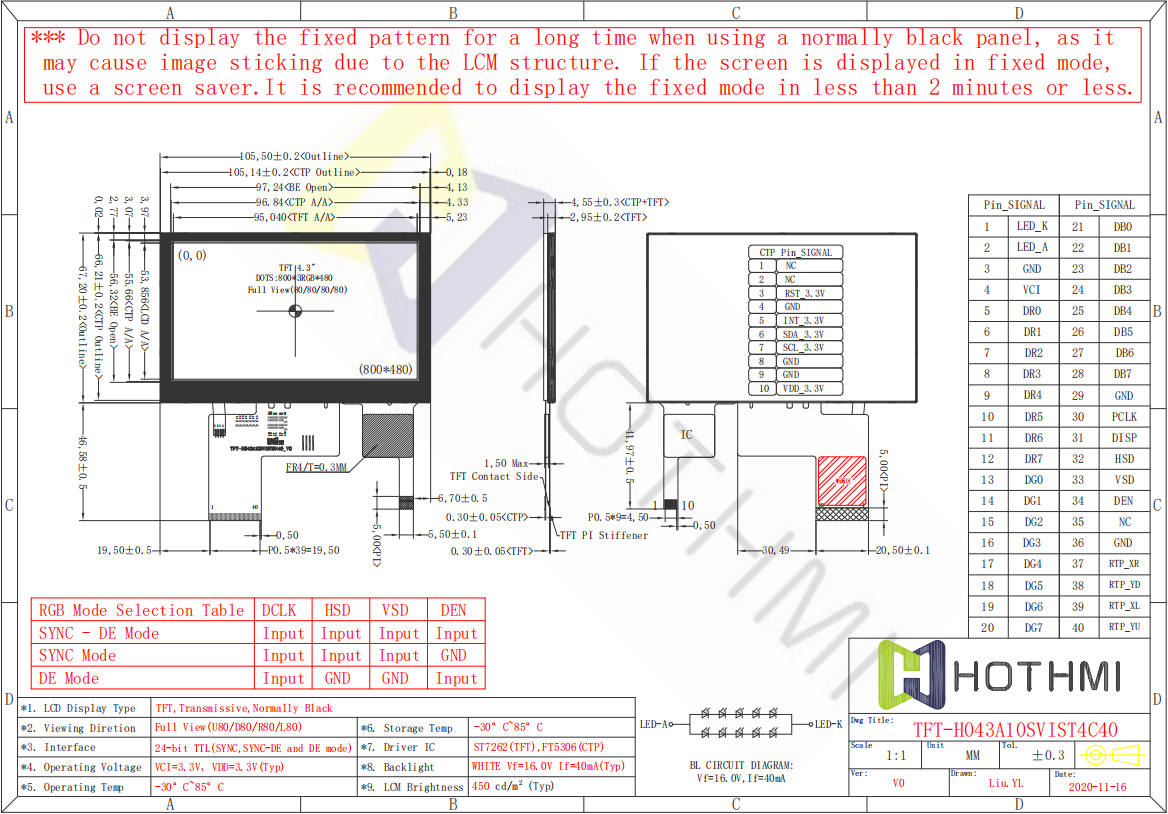

4.3 inch TFT horizontal screen | 800*480 resolution | IPS full viewing angle | Capacitive touch screen | TFT-H043A10SVIST5C40image.png
