Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  4.3寸TFT液晶屏|480*272分辨率|IPS全視角|H043B1WQIST6N40
  • Model : 4.3 inch TFT LCD screen|480*272 resolution|IPS full view|H043B1WQIST6N40

    Product type:TFT

    Show contents:480x272

    Outline size(mm) :105.5x67.20x3.0

    Size of View Window(mm):4.3

    Display size(mm) :4.3

    Effective size(mm):95.04x53.86

    Product application:Vehicle, medical, industrial control

    Visual angle:Full view

    Backlight type or brightness:600cd/m2

    Connection PIN Number:FPC-40PIN

    Interface mode:RGB

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:3.3v

    Driver chip model:SC7283

Product description

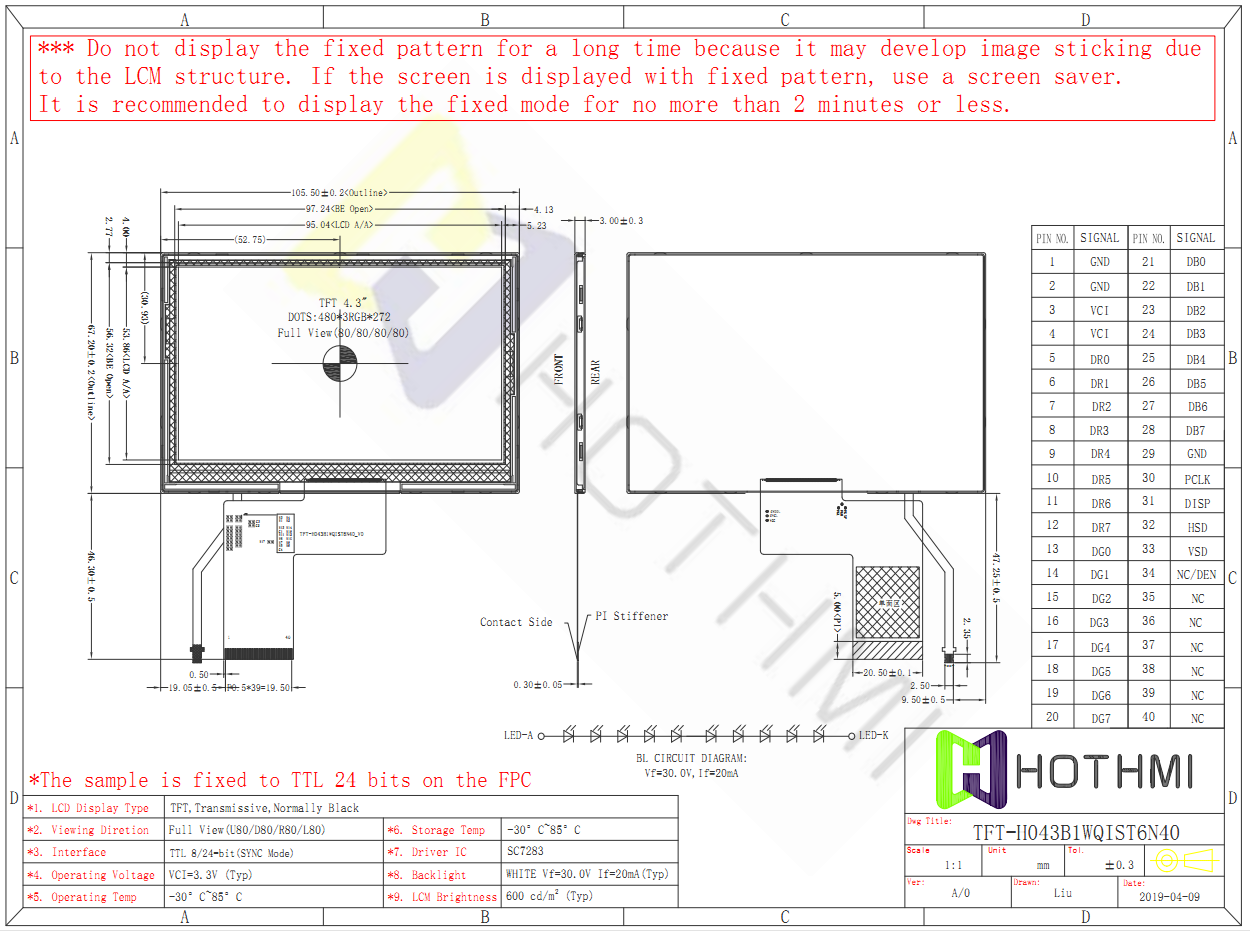

4.3 inch TFT LCD screen|480*272 resolution|IPS full view|H043B1WQIST6N40image.png
