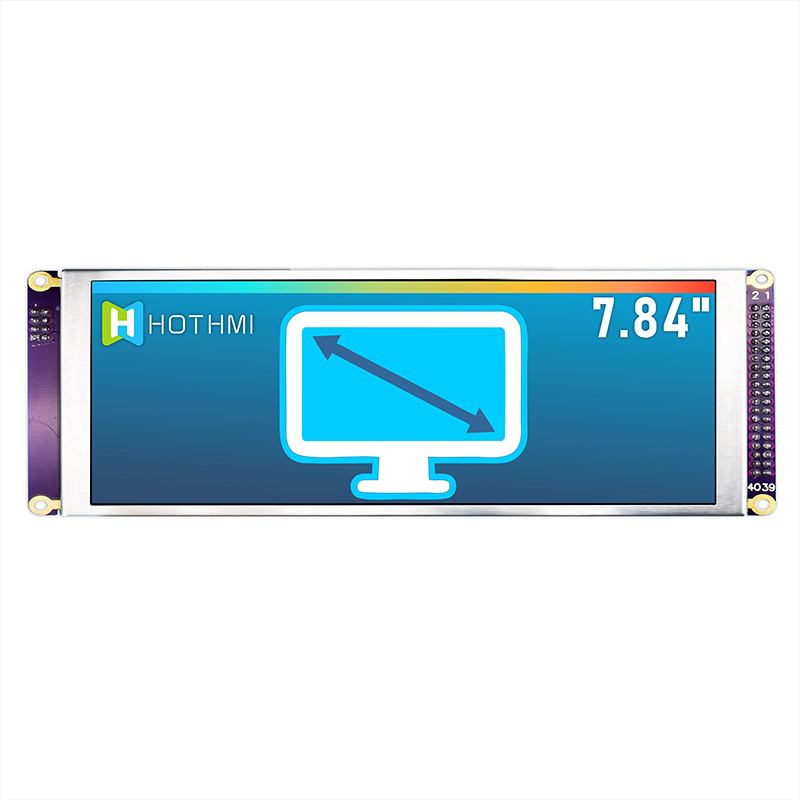

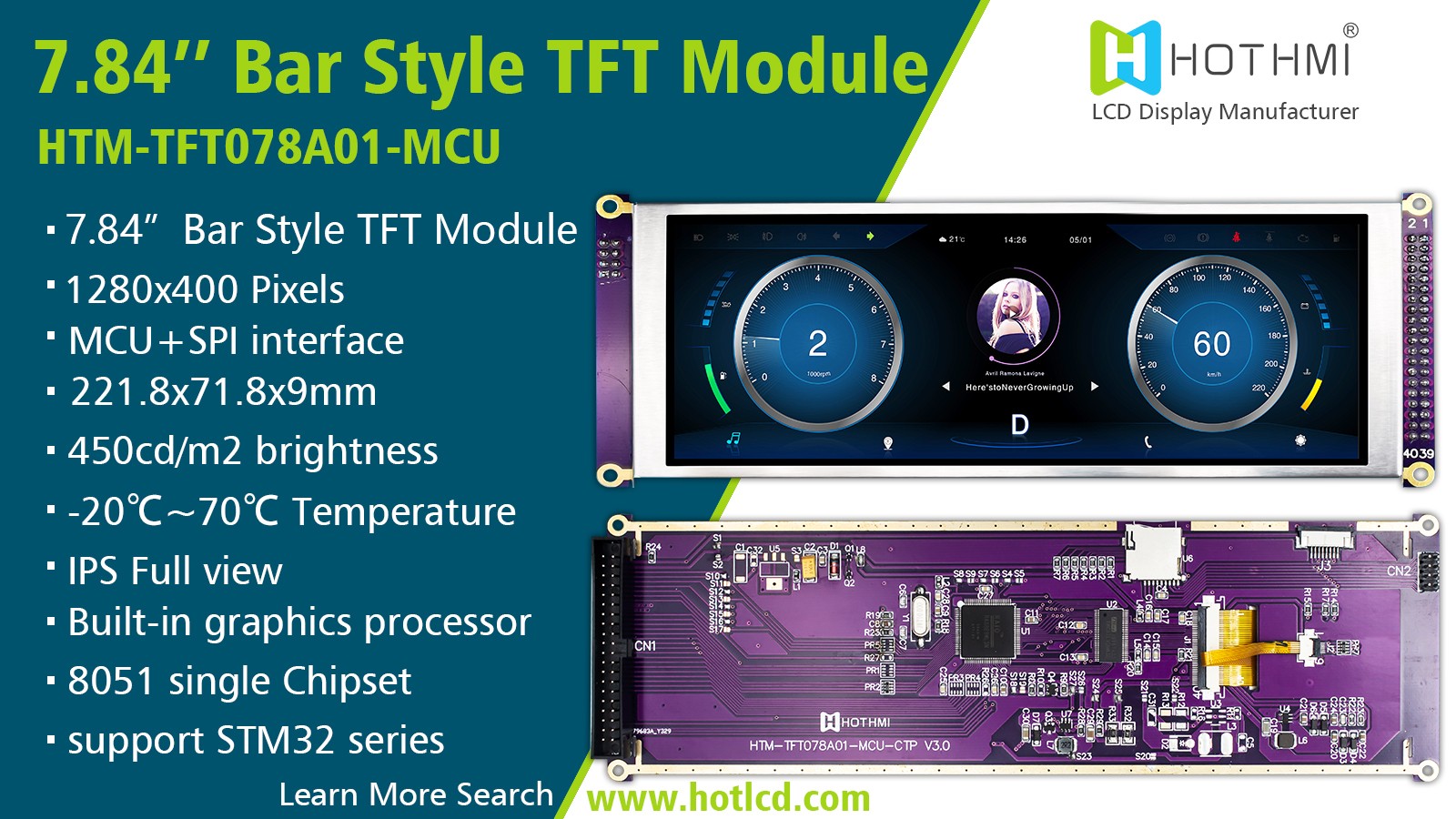

  • Model : 7.84 Inch Bar Style IPS TFT LCD Display 1280x400 MCU For Car Monitor HTM-TFT078A01-MCU

    Product type:TFT Module

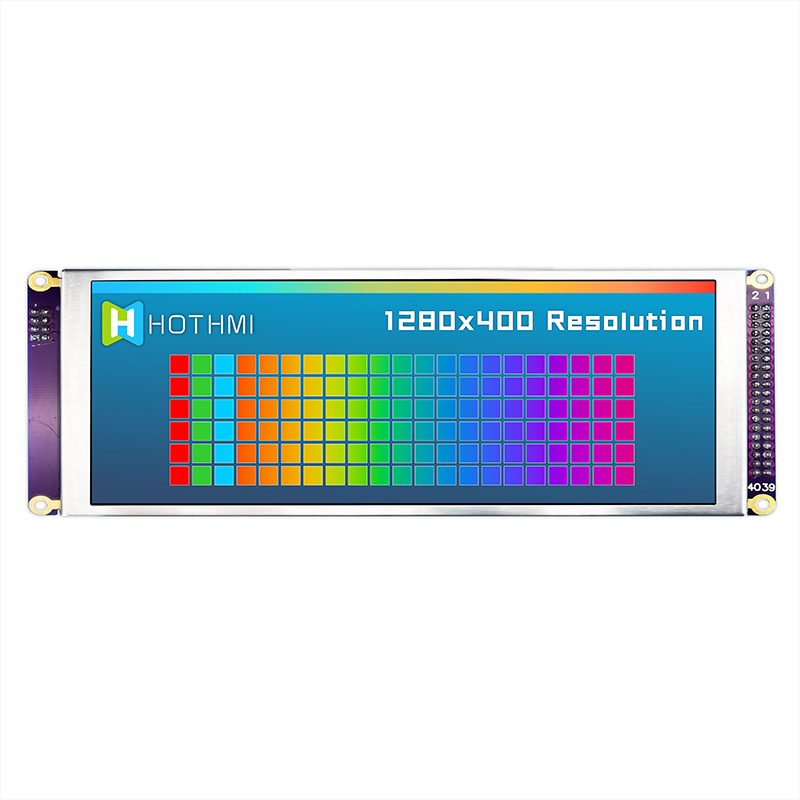

    Show contents:1280x400

    Outline size(mm) :221.8×71.8×9

    Size of View Window(mm):7.84

    Display size(mm) :7.84

    Effective size(mm):190.88x60.2

    Product application:Vehicle, medical, industrial control

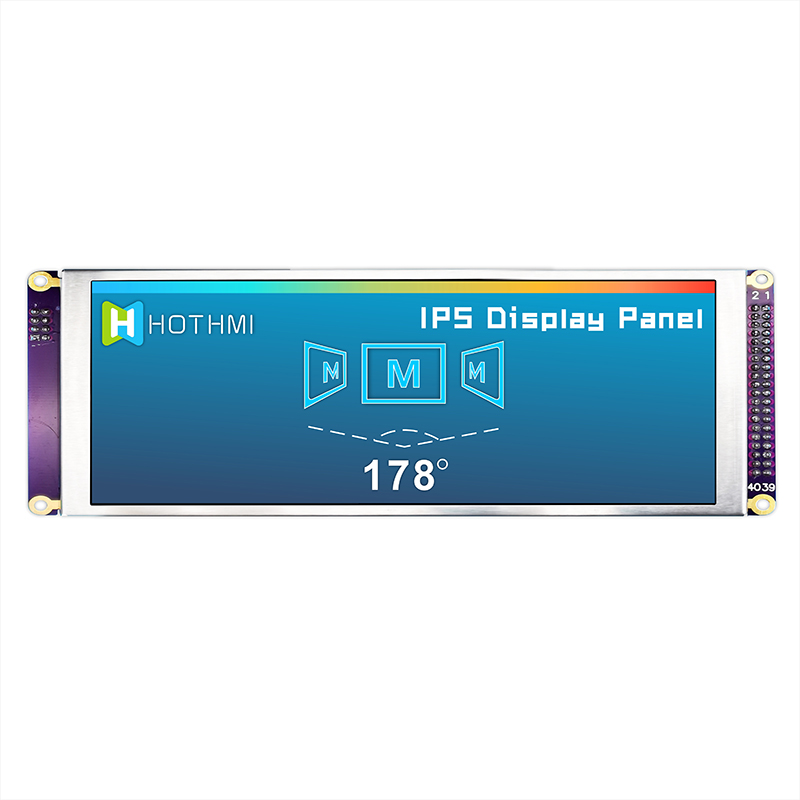

    Visual angle:Full view

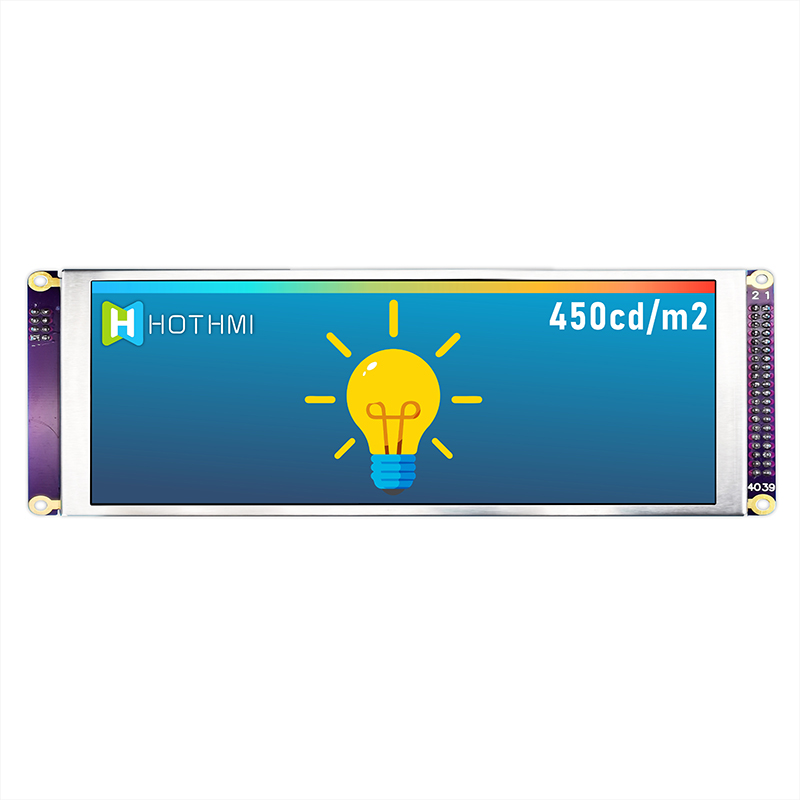

    Backlight type or brightness:450cd/m2

    Connection PIN Number:48pin

    Interface mode:MCU

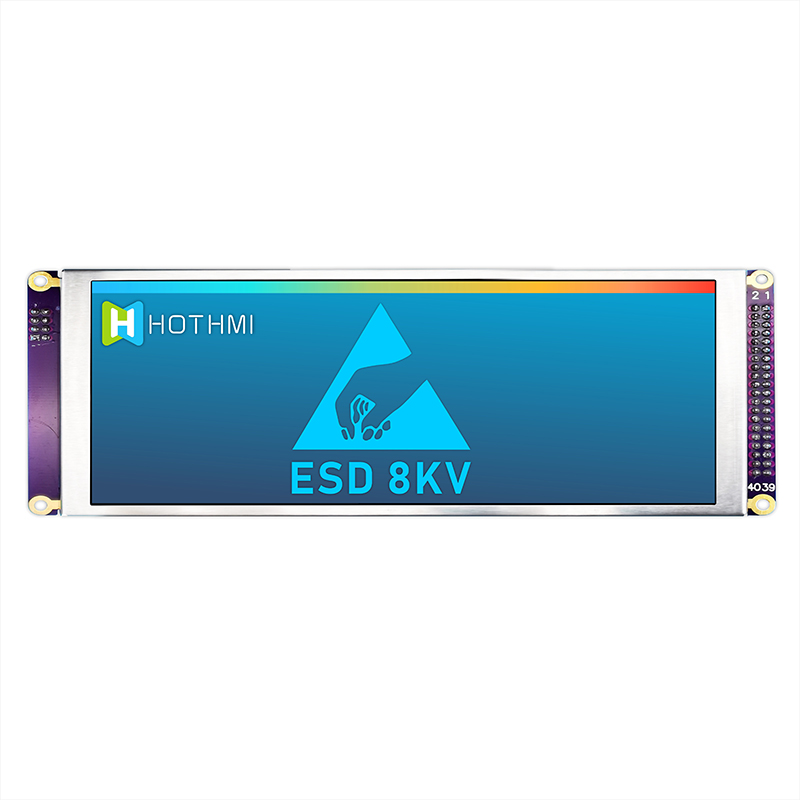

    Special instructions:Anti-static ESD 8KV

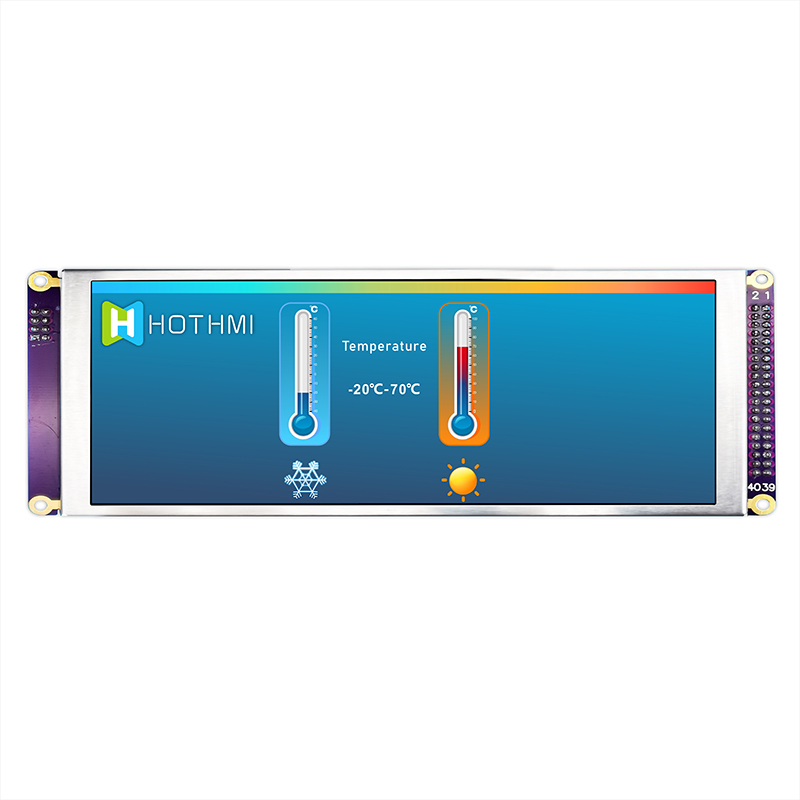

    Working temperature:-20~70℃

    Power supply voltage:3.3V

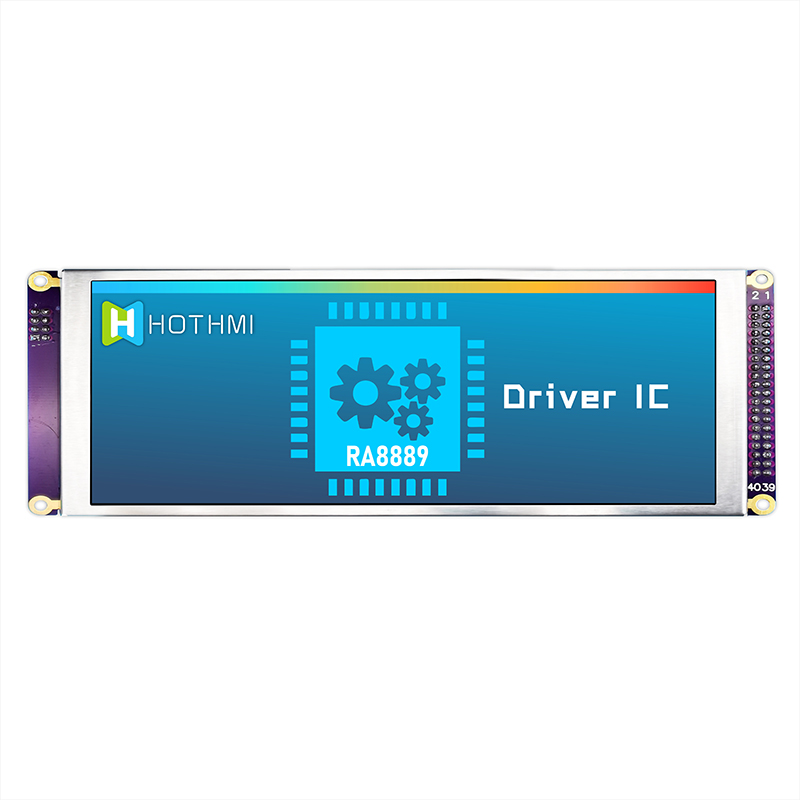

    Driver chip model:RA8889

    PDF download
Product description

7.84 Inch Bar Style IPS TFT LCD Display 1280x400 MCU For Car Monitor HTM-TFT078A01-MCU

Here is the translated version of the specifications for the HTM-TFT078A01-MCU product:

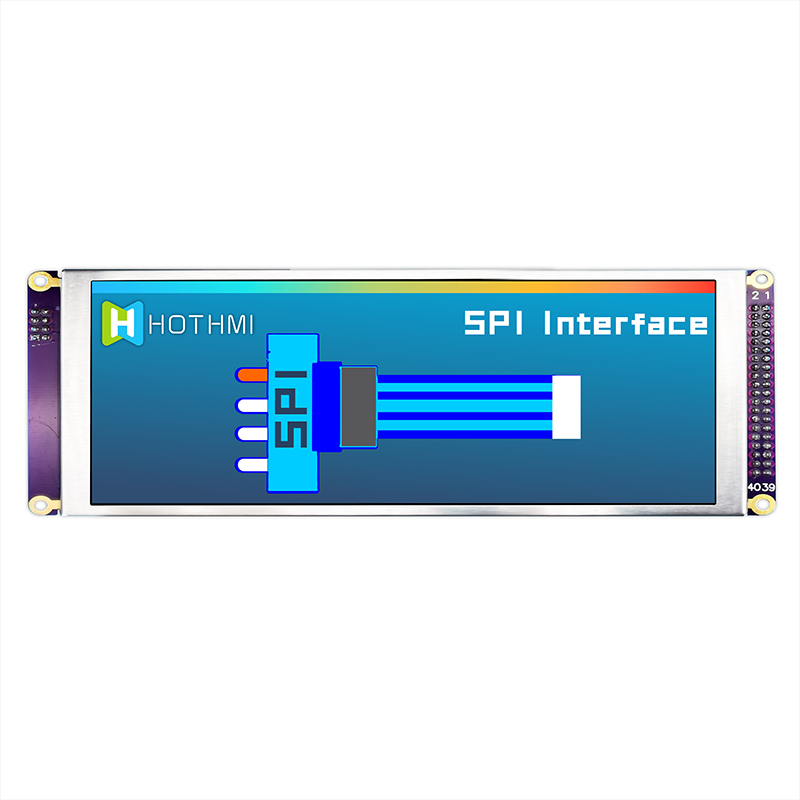

Screen Type: 7.84-inch Bar Style IPS TFT LCD Display Resolution: 1280x400 pixels LCD Controller Board: Included Luminance: 450cd/m2 Interface: MCU+SPI TFT Module Operating Temperature Range: -20°C to 70°C Built-in Graphics Processor Single Chipset: 8051 Supports STM32 series chipsets

The HTM-TFT078A01-MCU product offers the following key specifications. It features a 7.84-inch high-resolution IPS TFT LCD display with an included LCD controller board. The interface supports MCU+SPI, and it comes as a TFT module.

With a luminance of 450cd/m2, it provides bright and clear visuals. The product operates within a temperature range of -20°C to 70°C, making it suitable for various environments. It also includes a built-in graphics processor for enhanced image processing capabilities.

The HTM-TFT078A01-MCU utilizes a single 8051 chipset and offers compatibility with STM32 series chipsets. It is designed specifically for car monitors, providing excellent visual performance and touch interaction experience.
