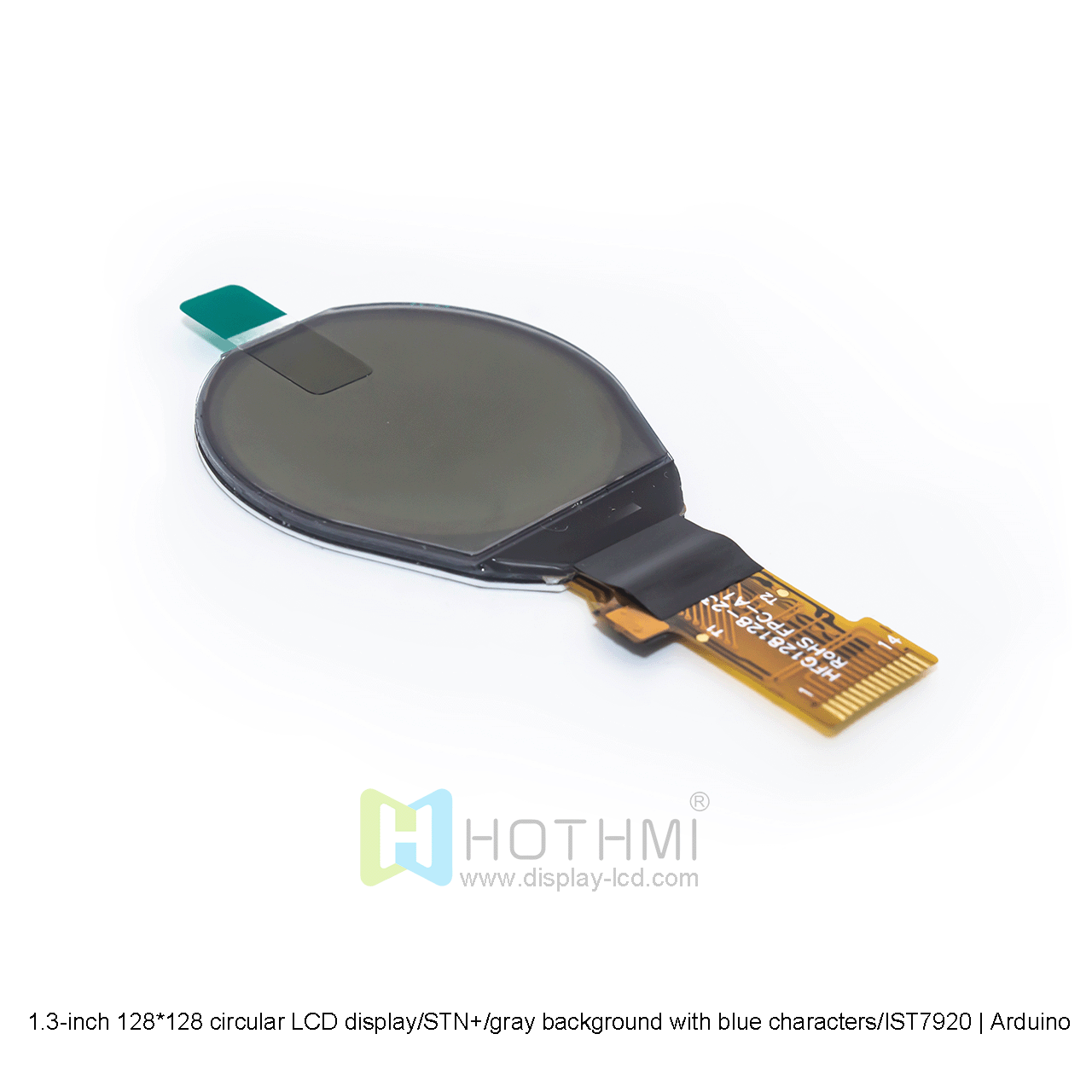

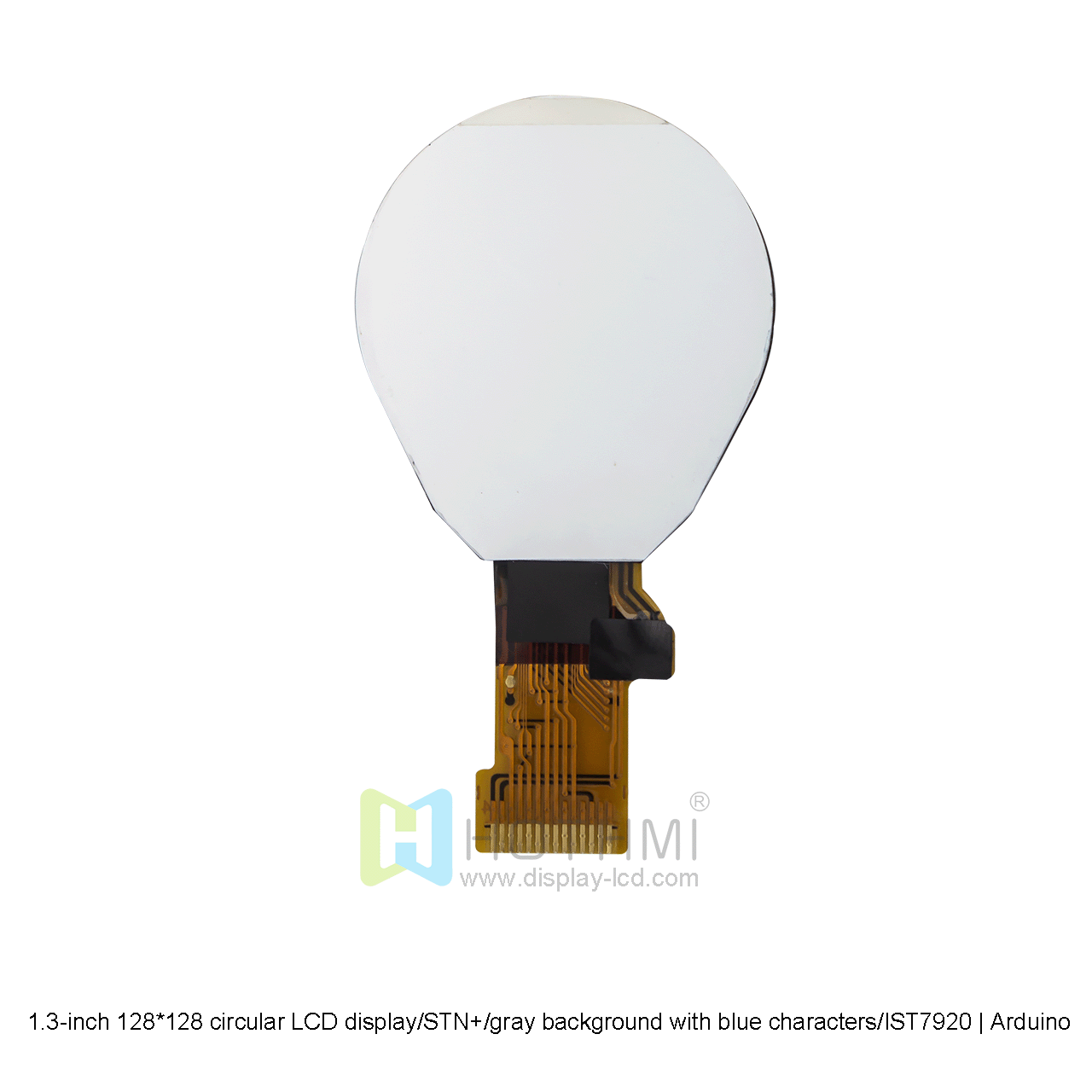

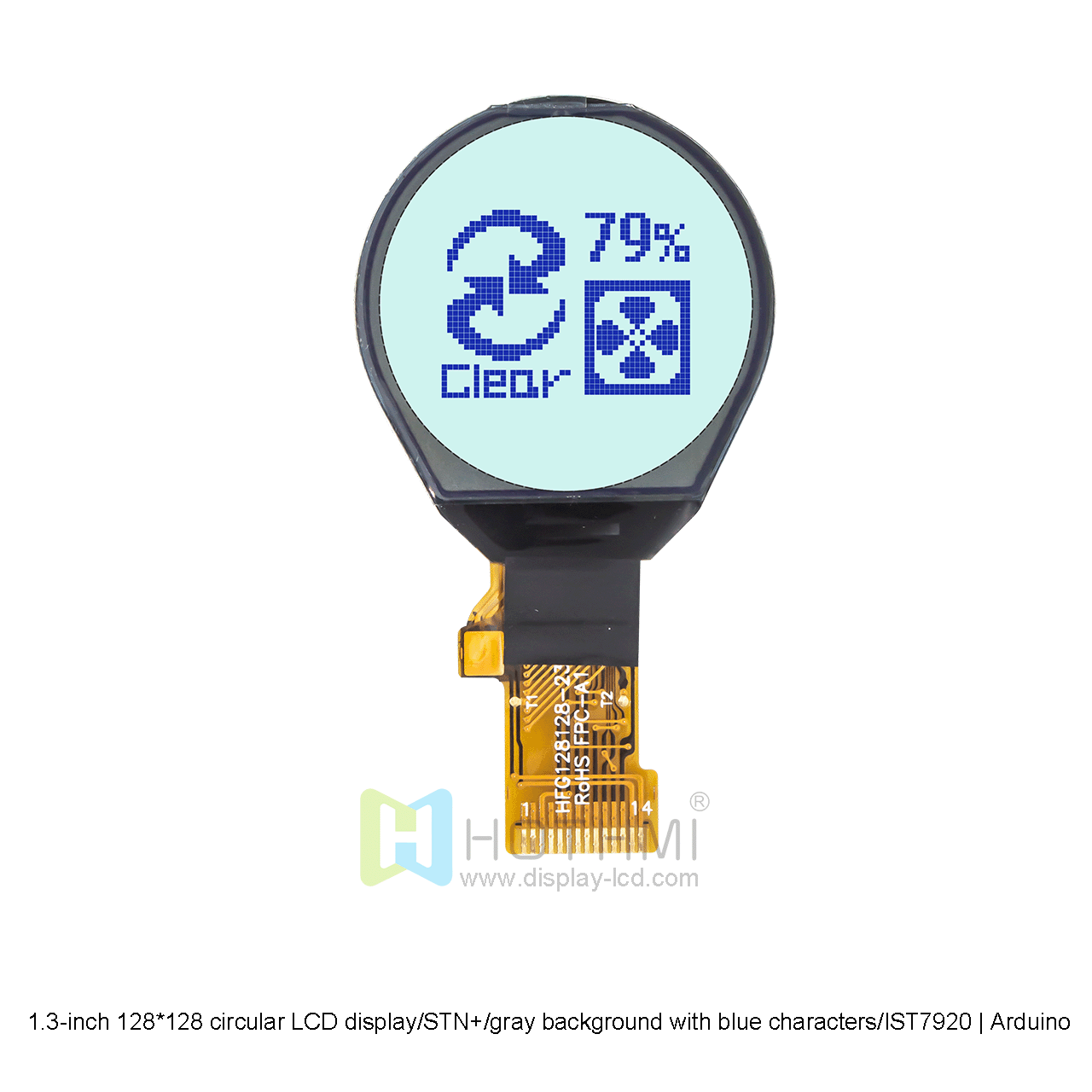

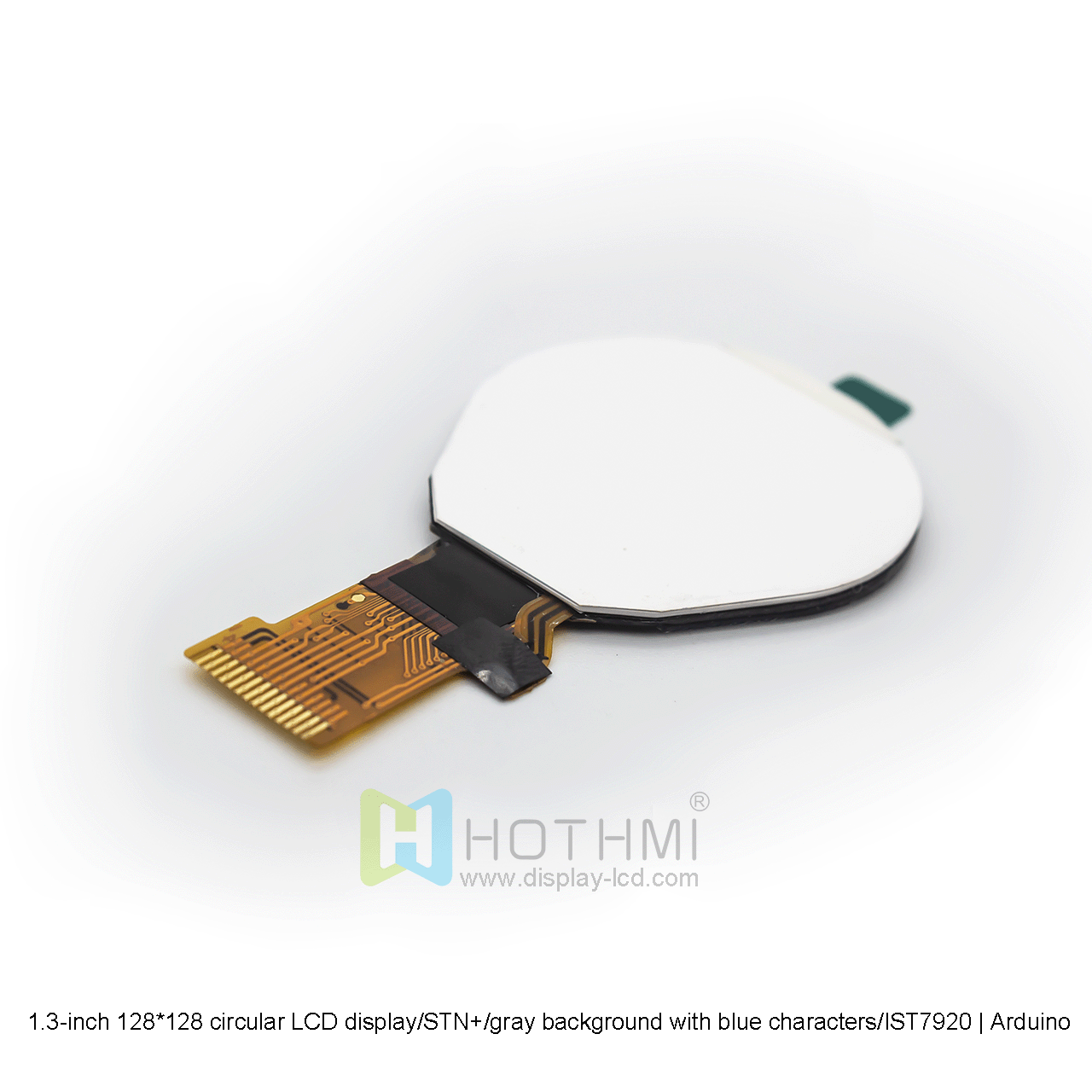

  • Model : 1.3-inch 128*128 circular LCD display/STN+/gray background with blue characters/IST7920 | Arduino HTG128128-IST7920-11W

    Product type:COG Graphic LCD

    Show contents:128X128

    Outline size(mm) :32.67*35.6*2.00

    Size of View Window(mm):28.67*28.67

    Display size(mm) :1.3

    Point spacing(mm):0.20*0.20

    Effective size(mm):26.67*26.67

    Product application:Instruments

    Visual angle:6H

    Backlight type or brightness:STN+ White backlight

    Connection PIN Number:FPC-14pin

    Interface mode:SPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:3.3V

    Driver chip model:IST7920

Product description

1.3-inch Circular COG | 128x128 Dot COG LCD | 1.3-inch Circular LCD | STN+| Gray Background with Blue Characters | IST7920 | Arduino

Hot Display 1.3-inch Circular COG | 128x128 Dot COG LCD | 1.3-inch Circular LCD | STN+| Yellow-green Background | IST7920 | Arduino . This is a circular graphic LCD display that presents a gray background with dark blue characters, high contrast, and better viewing effect. The character content is clear. This translucent LCD display is carefully designed to provide optimal visibility under various lighting conditions in many different environments. Under the reflective effect of the polarizer, the image can be reflected to the viewer. Make the screen easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and show clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.

This graphic LCD display module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. Designed to withstand harsh operating conditions, this model operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates at 3.3V, and is RoHS compliant.

Custom LCD Size:

Combined with the product structure, determine the required LCD size, screen type, etc. Mold manufacturing, according to the design, manufacture LCD molds, this process requires precise manufacturing technology and equipment. Support customization within 396*345mm.

Customize the number of dots and display icon content:

Supports customization of display content within 640*320 dot matrix, and icon style can be customized according to customer needs.

Backlight color and structure customization:

There are many combinations of module backlight to choose from, without backlight or with yellow-green / blue / white / amber / red / RGB backlight, up to 48 effects to choose from, please click on the customization page for reference.

Customized interface: Provide multiple interface options, SPI \ 8080 \ I2C, etc.



Driver board customization:Supports adjustment of driver board size, component sorting, interface type, etc.
