  • Model : 8.9 inch TFT/800x1280 color screen/IPS TFT LCD/MIPI interface/JD9365D controller TFT-H089A1WXIFT5N40

    Product type:TFT

    Show contents:800x1280

    Outline size(mm) :125.38*202.84*2.55

    Size of View Window(mm):8.9

    Display size(mm) :8.9

    Effective size(mm):119.28*190.85

    Product application:technical equipment, office equipment, household appliances

    Visual angle:IPS

    Backlight type or brightness:500cd/M2

    Connection PIN Number:FPC-40pin

    Interface mode:FPC-40pin

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:+3.3 V

    Driver chip model:JD9365D

    PDF download
Product description

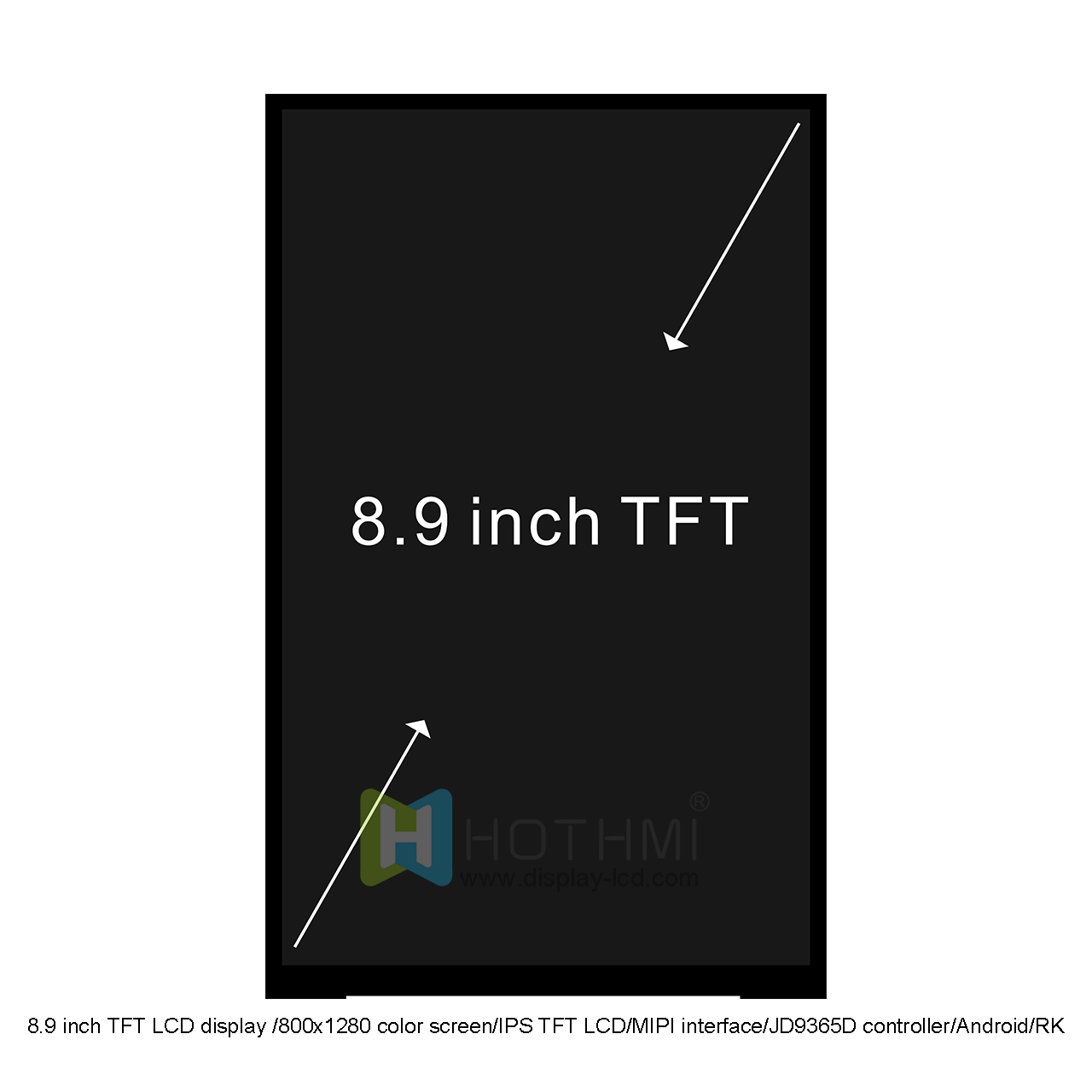

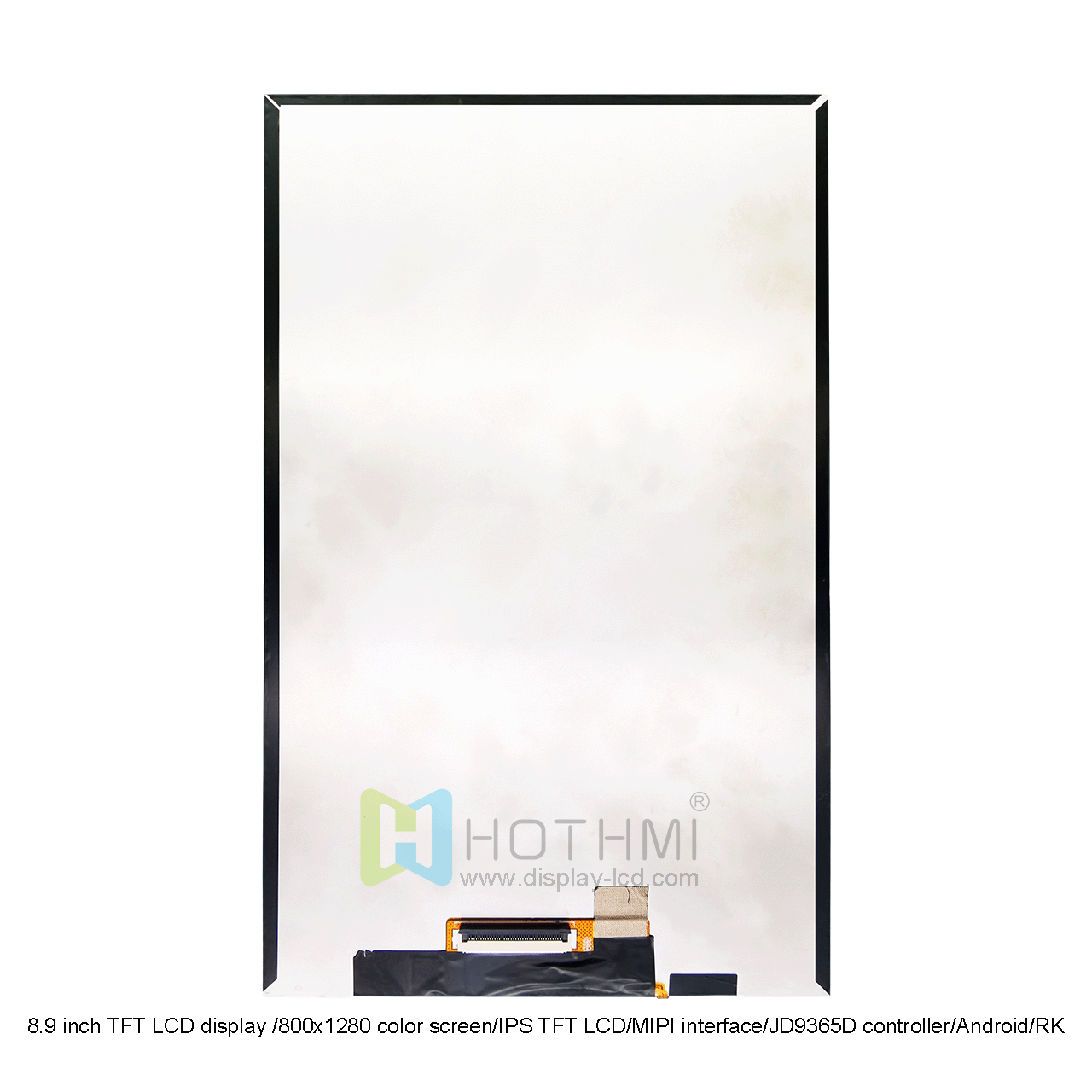

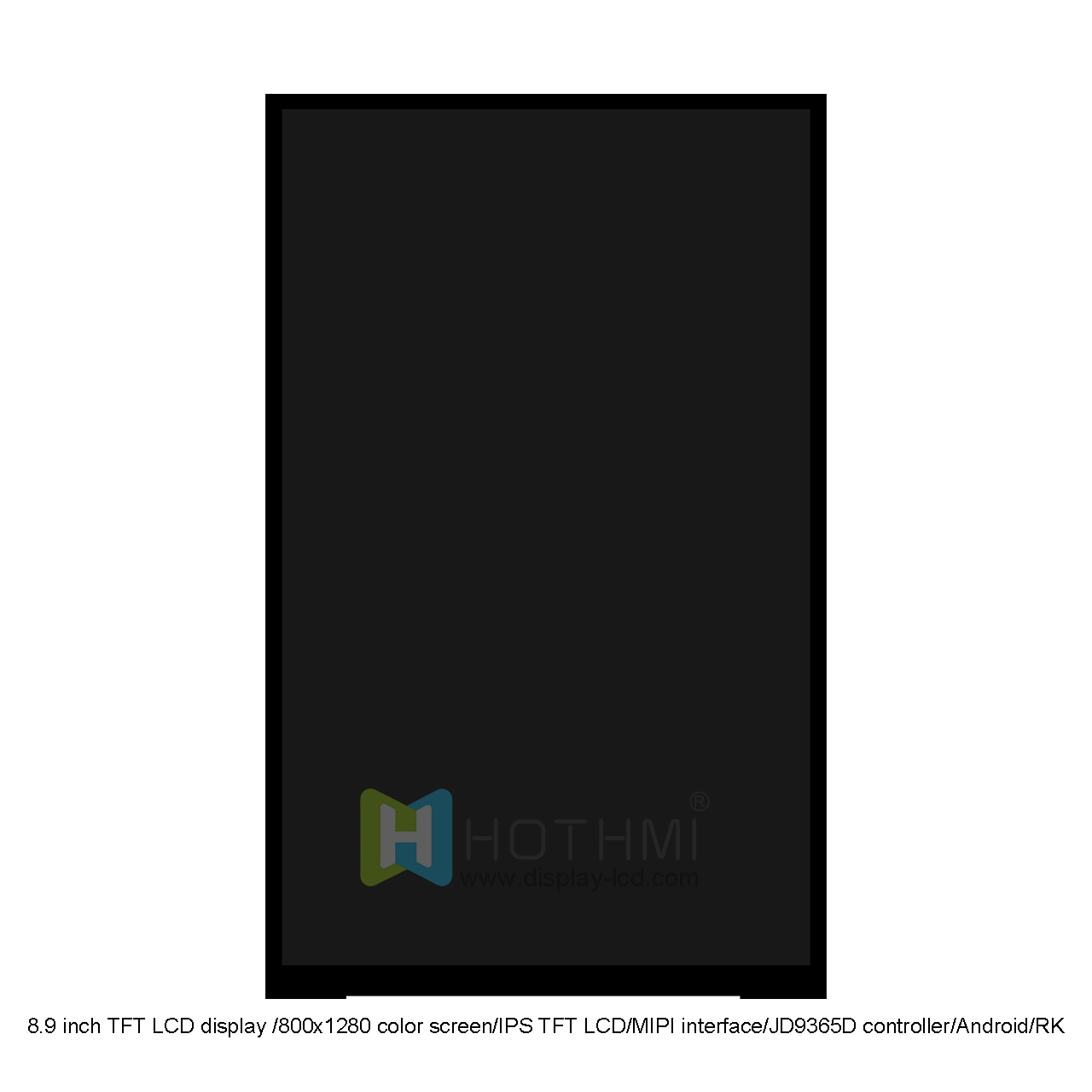

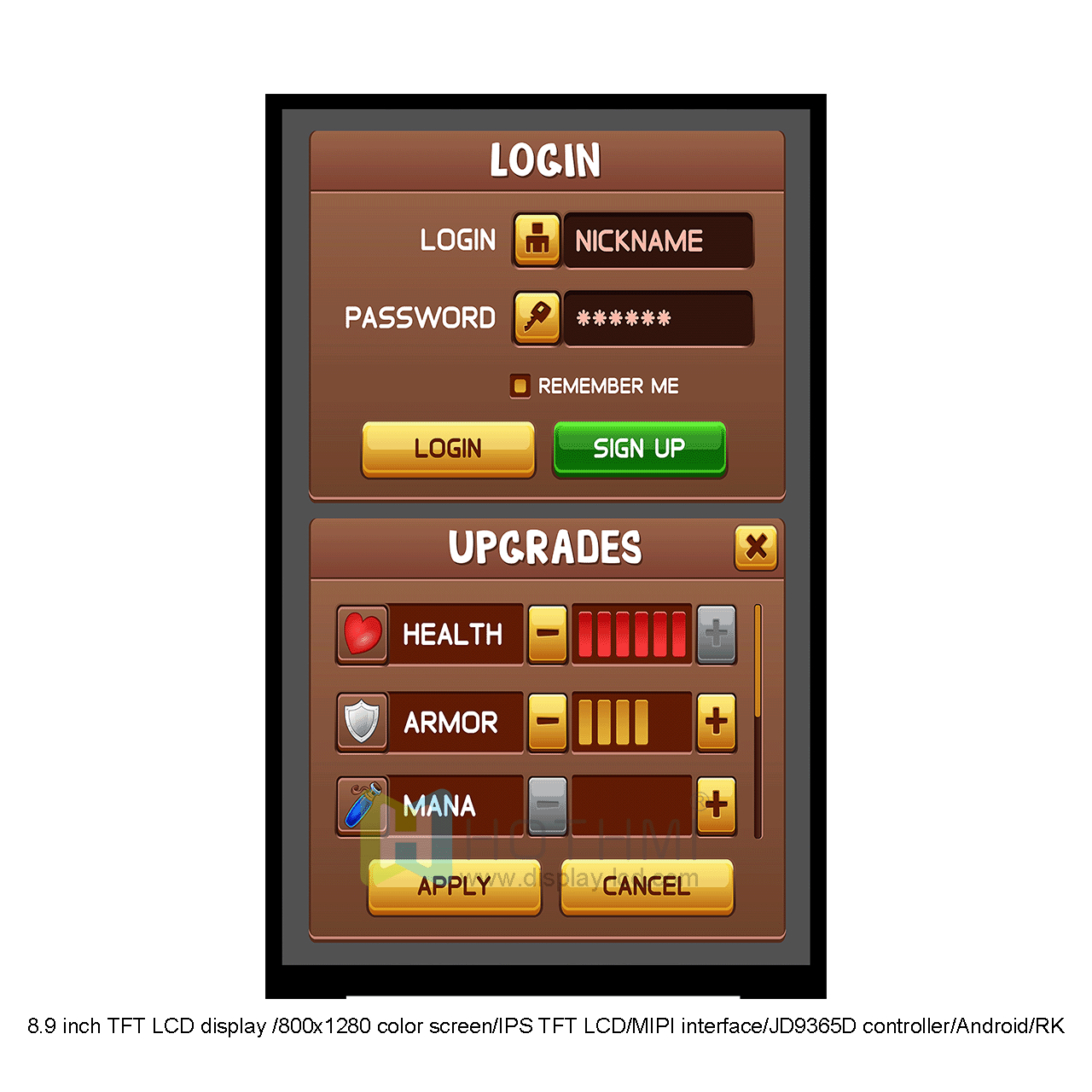

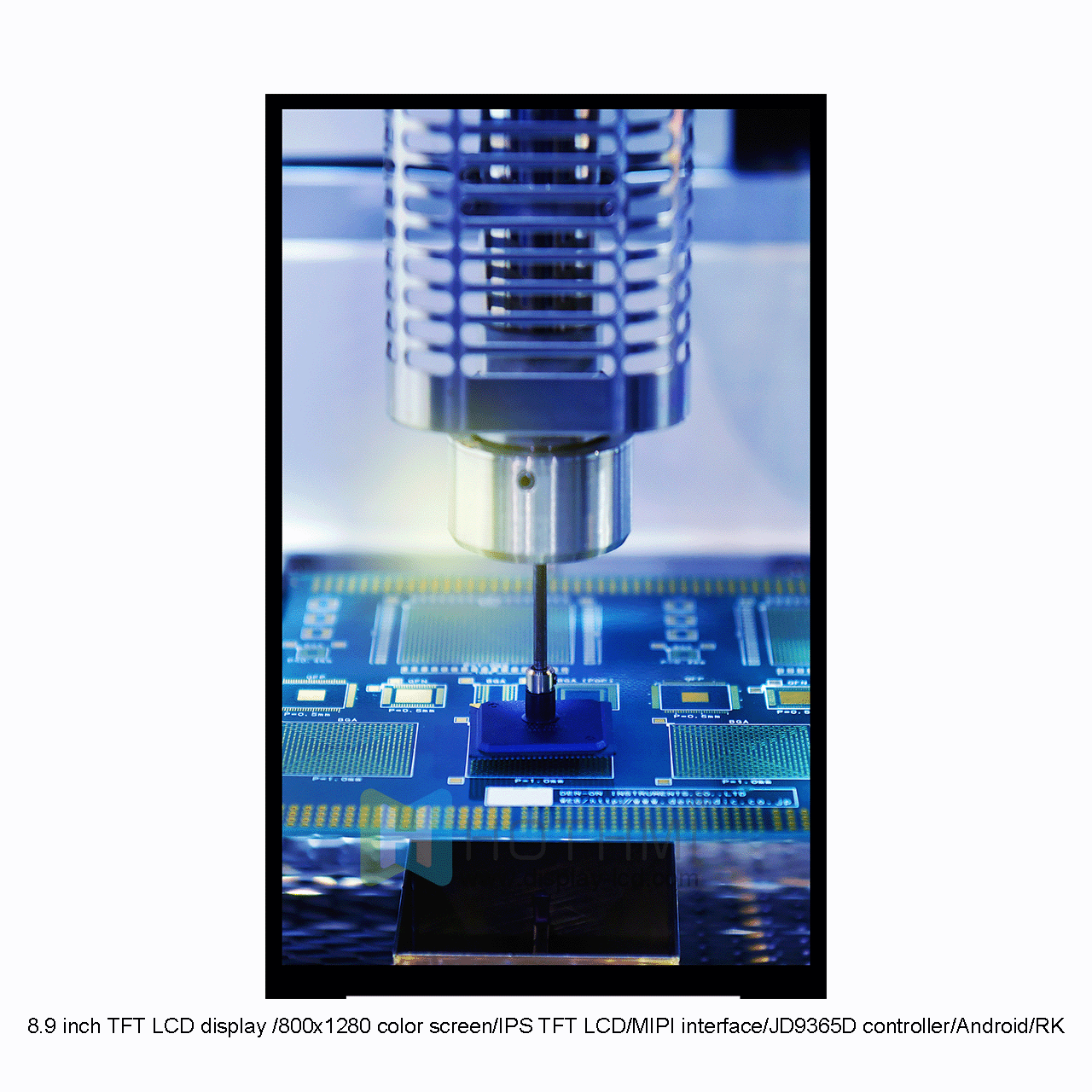

8.9 inch TFT LCD display /800x1280 color screen/IPS TFT LCD/MIPI interface/JD9365D controller

TFT-H089A1WXIFT5N40 is an 8.9 inch color TFT LCD module display with 800x1280 resolution, 500cd/m2 brightness, with JD9365D controller, optional capacitive touch screen or version without touch function, excellent display quality, ultra-wide viewing angle, and can be easily controlled by 8051, PIC, AVR, ARDUINO ARM and Raspberry PI, etc. It can be used in any embedded system, industrial equipment, security and handheld devices that need to display with high quality and color images. It supports MIPI interface. FPC with zif connector is easy to assemble or disassemble. This display is without driver board, and we can also provide models with driver board. The display picture is clear, the color gamut is wide, and the overall display effect is good. Application direction: technical equipment, elevator controller, industrial machinery, etc.; office automation, printers, scanners, attendance machines, fax machines, etc.; household appliances, air conditioning displays, refrigerators, rice cookers, video doorbells, etc.
