  • Model : 7.0 inch IPS TFT LCD display / 280x1424 resolution color display TFT-H070A21ZBINV6N40

    Product type:TFT

    Show contents:280X1424

    Outline size(mm) :182.47x38.2x3.45

    Size of View Window(mm):7.0

    Display size(mm) :7.0

    Effective size(mm):170.88x33.6

    Product application:coffee machine, small household appliances

    Visual angle:IPS

    Backlight type or brightness:white backlight 650cd/M2

    Connection PIN Number:FPC-40 pin

    Interface mode:MIPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-30~80℃

    Power supply voltage:+3.3 V

    Driver chip model:ST7703

    PDF download
Product description

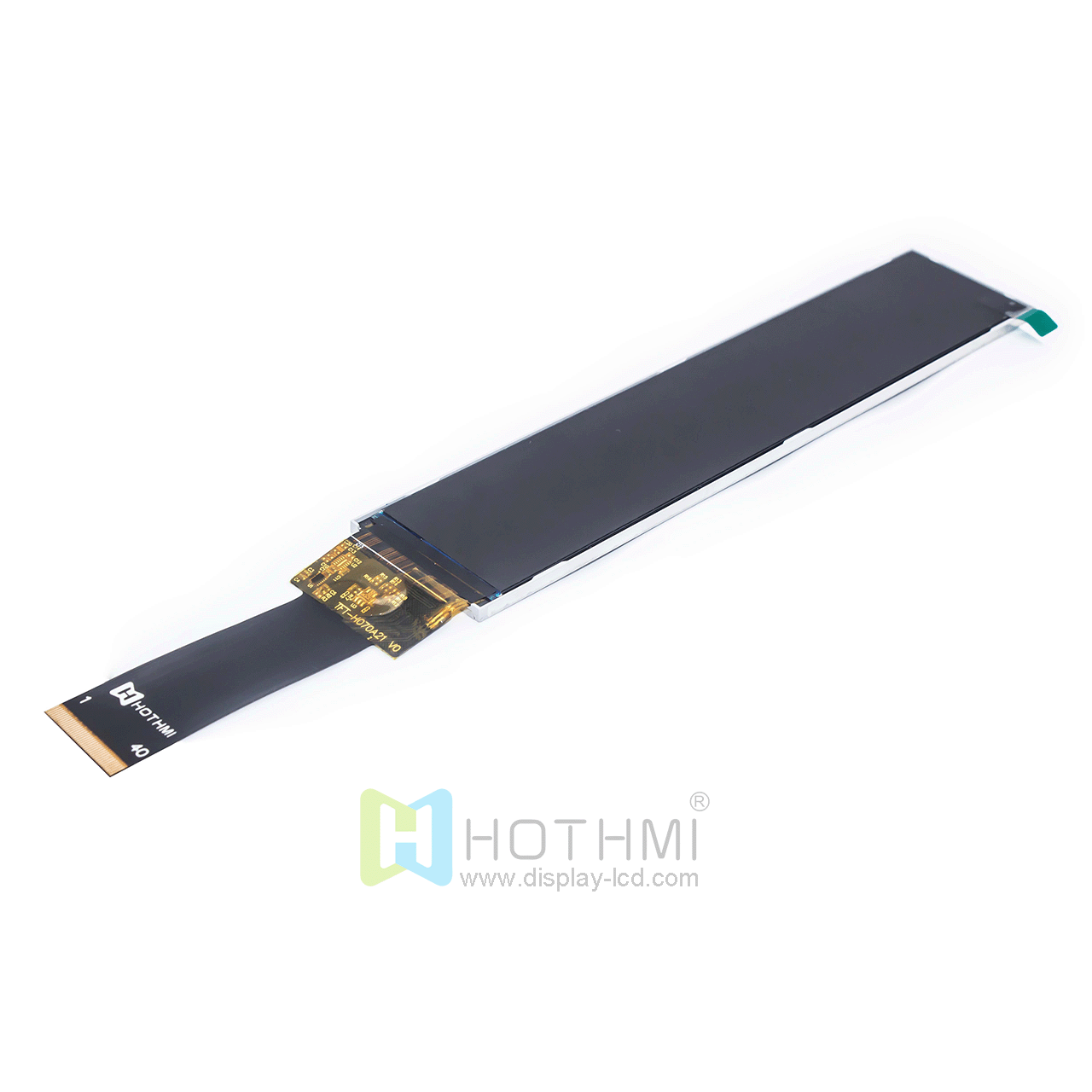

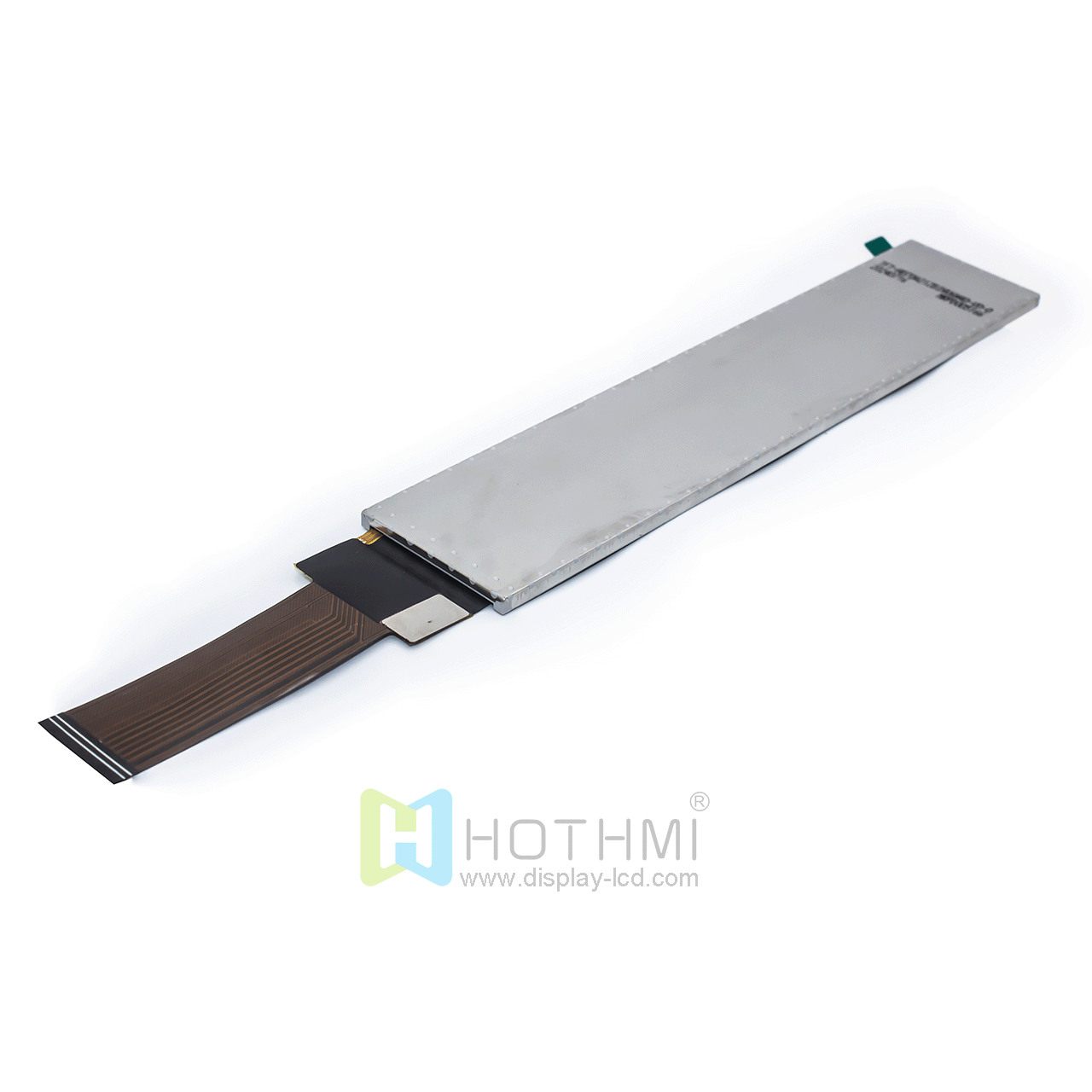

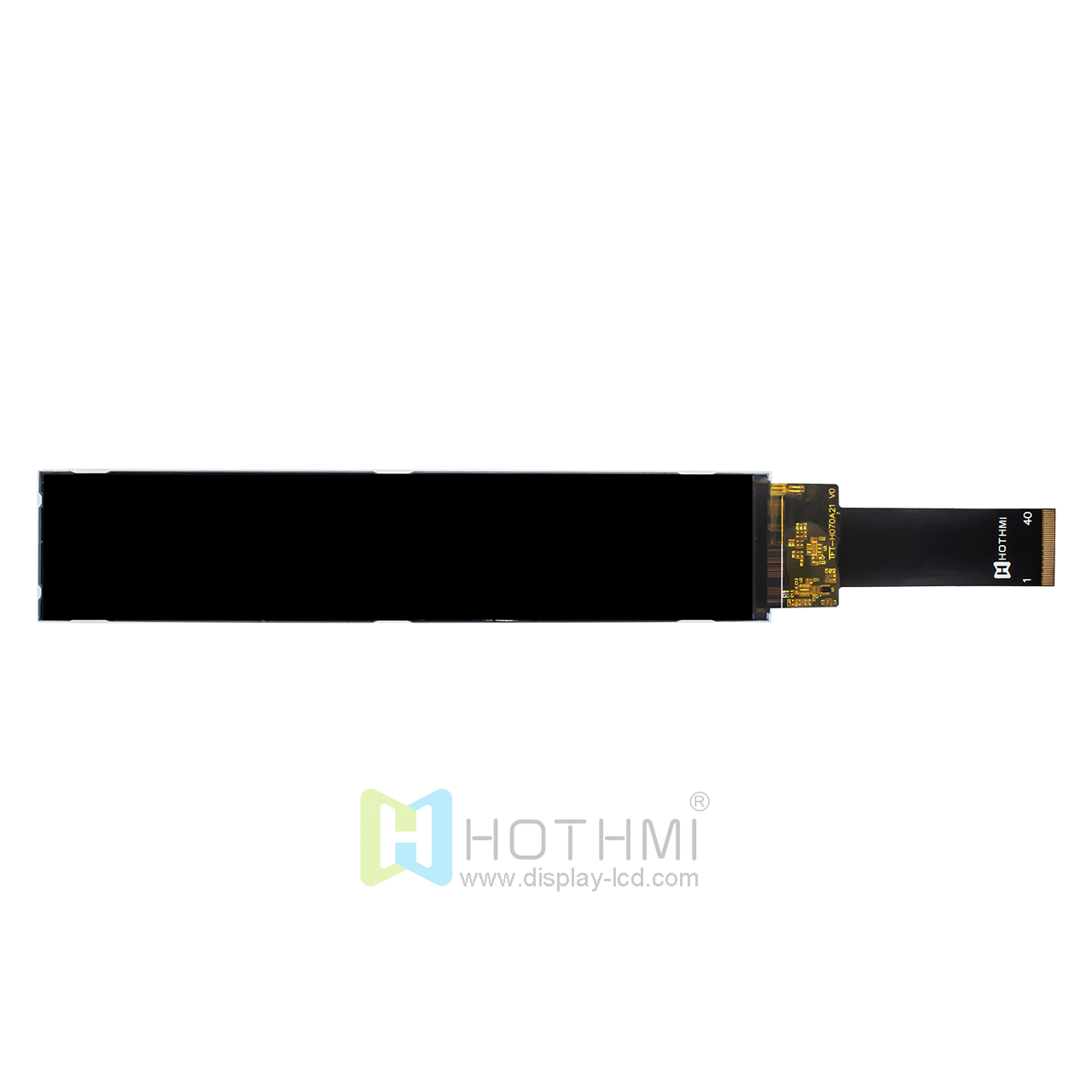

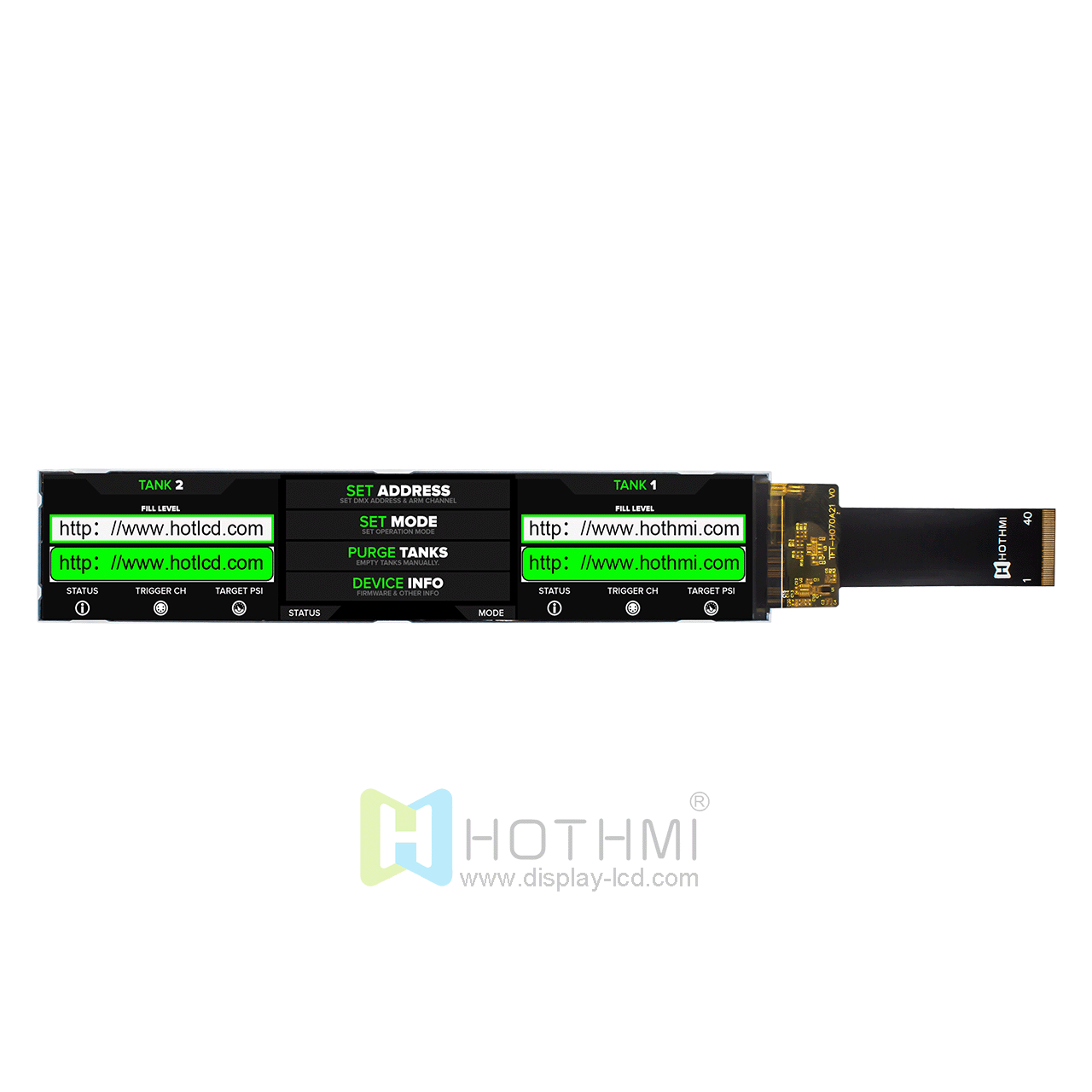

7.0 inch IPS TFT LCD display / 280x1424 resolution color display / with ST7703 controller

7.0 inch IPS TFT LCD display / 280x1424 resolution color display / with ST7703 controller The TFT-H070A21ZBINV6N40 is a 7.0 inch IPS TFT display with a resolution of 280x1424 pixels. The display has a high contrast ratio of 500:1, capable of deep blacks and vivid colors. It also has a brightness of up to 650cd/m2, making it suitable for use in both indoor and outdoor environments.

The TFT-H070A21ZBINV6N40 is equipped with optional resistive or capacitive touch screen capabilities, allowing users to interact with the display through touch. In addition, it is equipped with an optional FPC Zif connector for easy connection to other devices. It is also compatible with 8051 boards (a popular microcontroller board often used in embedded systems) and arduino shields with examples and libraries.

Overall, the 7.0-inch IPS TFT LCD display/280x1424 resolution color display/with ST7703 controller is a versatile, high-performance display suitable for a wide range of applications, including industrial control systems, home automation, and portable electronic devices.
