The intelligent serial screen (resistive touch) is a new series of products introduced by Xin Hongtai HOTLCD. It has a wide range of display sizes. The products are widely used in various industrial industrial control fields with excellent product performance.
All display and operation of Xin Hongtai intelligent LCD module are based on the variable configuration file preset in the module. When using, the interface designed by the computer can be switched into the intelligent display module through the interface to switch and refresh between different display interfaces.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

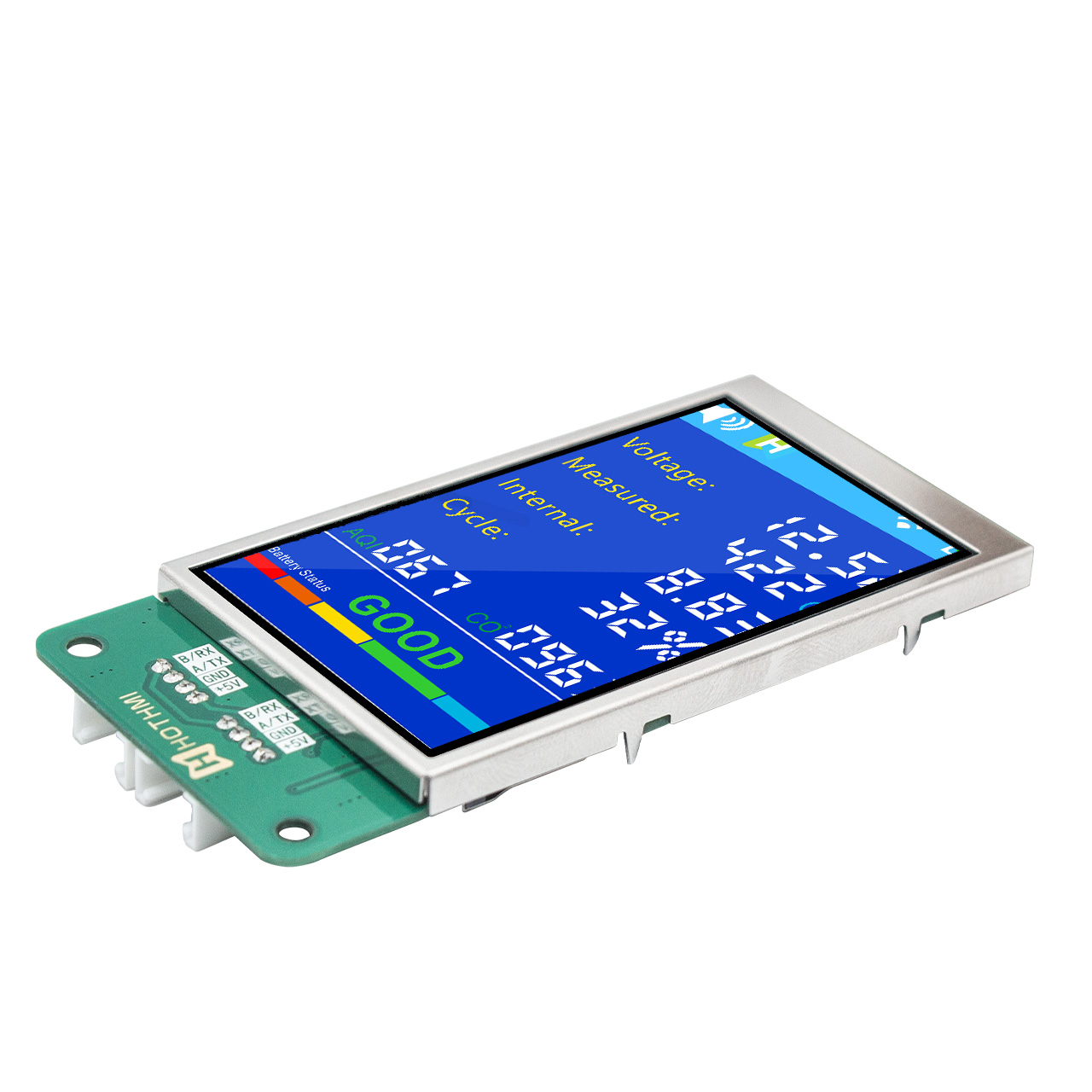

| 2.7-inch TFT smart display module-172x428 resolution smart display-UART interface HTM-H027A02-UART-A02 | TFT Module | 172x428 |
|
24.38x69.43x5.68 | 2.7 | 2.7 | 21.28x64.14 | IPS | 500cd/m2 | UART | Anti-static ESD 8KV | -20~70℃ | +3.3V | |||
| 2.7 inch Smart Display With 172x428 resolution Capacitive uxTouch HTM-H027A02-UART-A02C | TFT Module | 172x428 |
|
25.0x113.0x7.24 | 2.7 | 2.7 | 21.28x64.14 | IPS | 400cd/m2 | UART | Anti-static ESD 8KV | -20~70℃ | +3.3V | |||

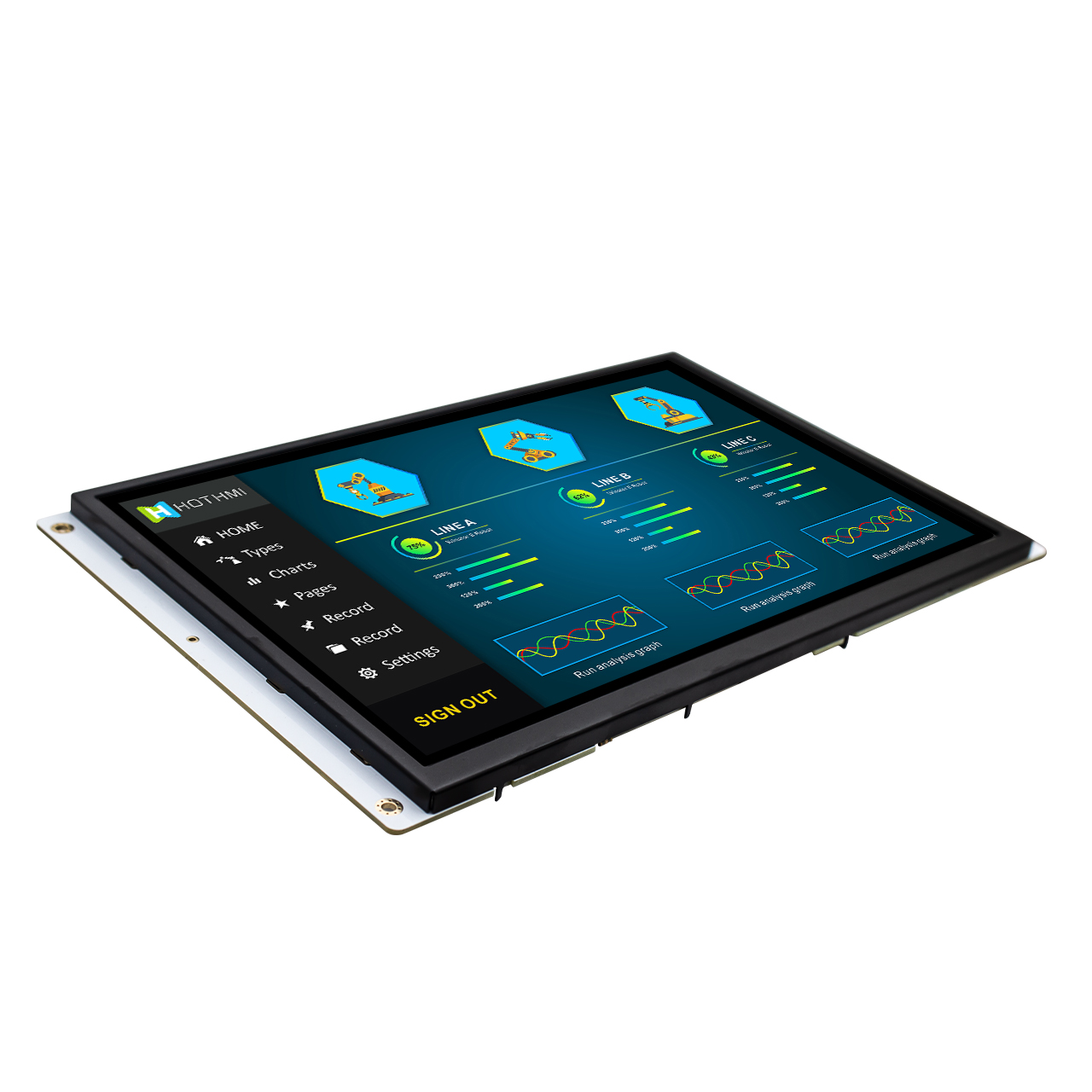

| 10.1" TFT Smart LCD Display | 1280x800 RS485 EZUI Capacitive TFT Modules | Optical bonding LCD HTM-H101A10-485-A02C | TFT Module | 1280x800 |
|
251.0x151.0x9.6 | 10.1 | 10.1 | 216.96x135.6 | IPS | Medical system | RS485 | Anti-static ESD 8KV | -30~80℃ | 5.0V | |||

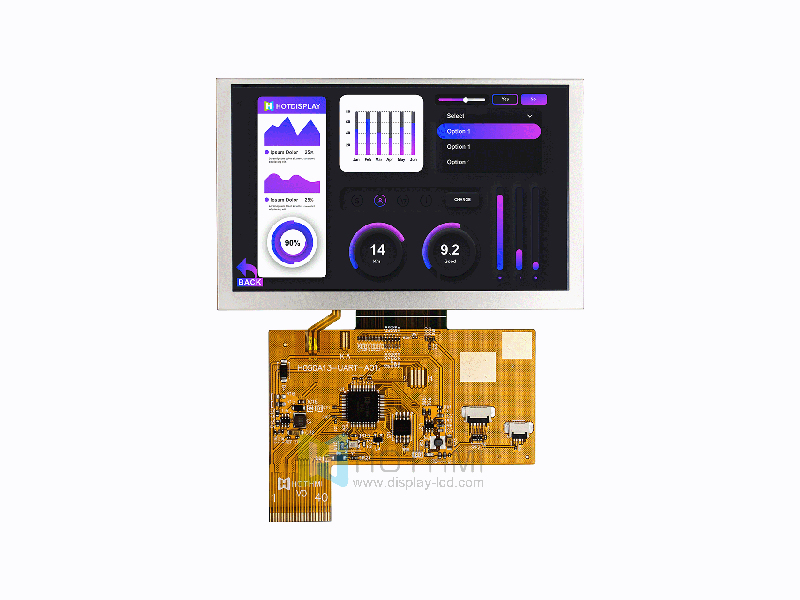

| 5.0 inch TFT LCD Module | 800x480 STM32 USART Smart display HTM050A1-USART-ST V1.0（none-TP） | TFT Module | 800x480 |
|
121.7x97.0x19.8 | 5.0 | 5.0 | 108.0x64.8 | IPS | 450cd/m2 | USART | STM32F767 | -20~70℃ | 12V~24V | STM32F767 | ||
| 5.0" Smart TFT Module | 800x480 STM32F767 Capacitive touch TFT display HTM050A1-USART-ST V1.0 | TFT Module | 800X480 |
|
121.7x97.0x20.7 | 5.0 | 5.0 | 108.8x65.8 | IPS | 450cd/m2 | USART | Anti-static ESD 8KV | -20~70℃ | 12V~24V | STM32F767 | ||
| 2.8 inch Smart TFT Module Display | USART 320x240 TFT Panel HTM-H028A16-USART-ST V2.0 | TFT | 320x240 |
|
88.0x53.3x11.7 | 2.8 | 2.8 | 57.6x43.2 | IPS | 500cd/m2 | USART | Anti-static ESD 8KV | -20~80℃ | +3.3V | USART | ||
| 3.5-inch TFT smart module | 320x480 EZUI serial port screen ATFLet035 V40 | TFT Module | 240x320 |
|
56x98x8.5 | 3.5 | 3.5 | 48.96x73.44 | IPS | UART | Anti-static ESD 8KV | +3.3V | |||||
| 3.0 inch TFT Panel | 360x640 EzUI TFT Screen | RS485 TFT Module HTM-H030A9-RS485-A01 | TFT Module | 360x640 |
|
43.69x100.0x10.0 | 3.0 | 3.0 | 36.72x65.28 | IPS | 350cd/m2 | RS485 | Anti-static ESD 8KV | -20~70℃ | +3.3V | |||
| 2.8“TFT LCD Display | 240x320 UART HMI Capacitive Display | Chip on FPC COF-H028B22-UART-01C | TFT Module | 家用電器、手持式儀器 |
|
57.2x92.3x4.0 | 2.8 | 2.8 | 43.2x57.6 | IPS | 500cd/m2 | UART | Anti-static ESD 8KV | -20~70℃ | +3.3V | |||
| 2.4-inch 240x320 smart TFT display module | HMI | Full-view TFT | UART interface smart display module HTM-H024B25-UART-A01 | TFT Module | 240x320 |
|
44.00x88.00x3.90 | 2.4 | 2.4 | 36.72x48.96 | IPS | UART | Anti-static ESD 8KV | -20~70℃ | 5.0V |
