Hotdisplay HOTLCD high contrast VA character display module is based on high contrast V, A type LCD, from 8 x2, 16 x1, 16x2, 16 x4, 20 x2, 20 x4, 40 x2 to 40 x4 format 5 x 8 dot matrix characters. LED backlights come in a variety of colors, including yellow/green, white, red, blue, green, yellow, and RGB LEDs, as well as without backlighting.
We offer modules for a variety of different fonts, including English/Japanese, Western Europe, Eastern Europe, Russian and Hebrew/Arabic. These character LCM modules are used in industrial and consumer applications, including access control devices, medical devices, automotive and home audio, white goods, gaming consoles, toys, and more.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Character size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

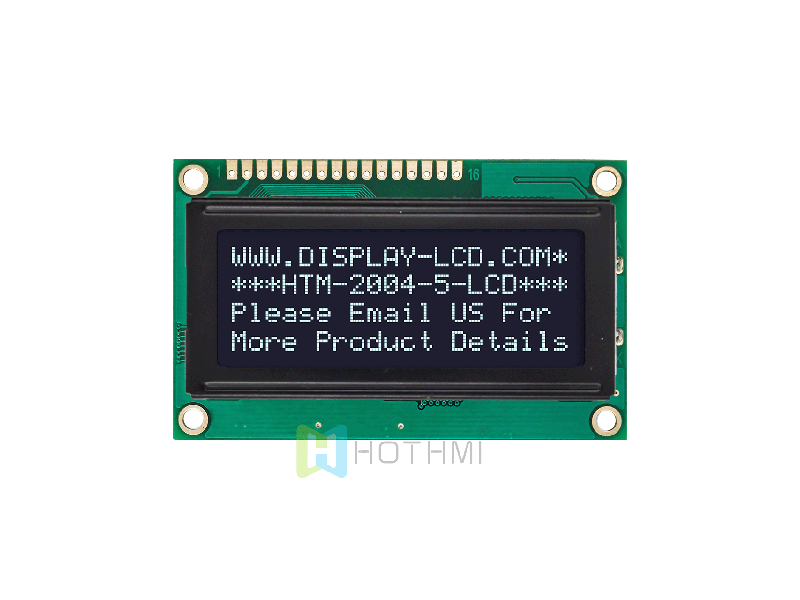

| 4x20 character LCD | DFSTN- monochrome display |white text on black background HTM-2004-5-41W-A5P | Character LCD Module | 20x4 |
|
77.0x47.0x14.7 | 60.0x22.2 | 55.12x17.56 | 6H | white | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | ST7066U | ||

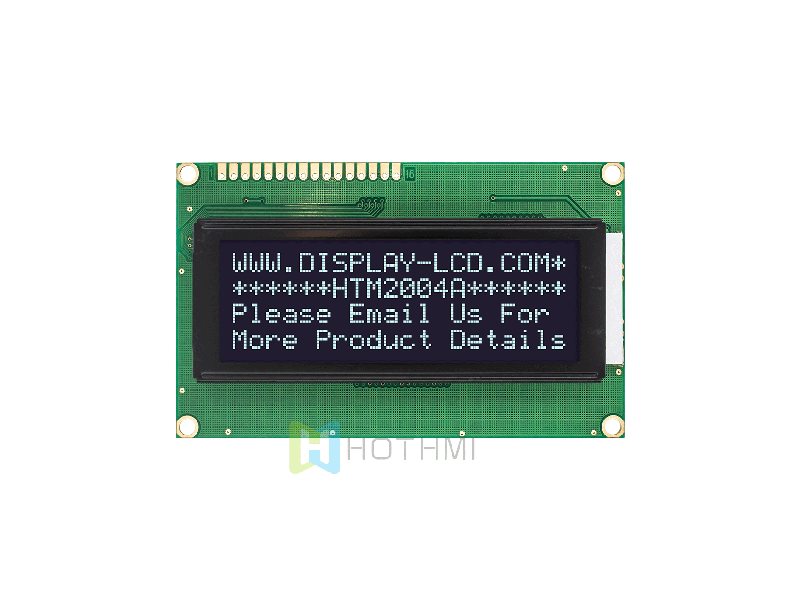

| 20x4 character LCD display | DFSTN - | Transflective |ST7066 controller HTM-2004A-41W-A5P | Character LCD Module | 20x4 |
|
98.0x60.0x14.2 | 76.0x25.8 | 70.4x20.8 | 6H | white | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | ST7066U | ||
| 20X2character LCD module/DFSTN (-) /white characters on black background HTM2002B-41W-A5P | Character LCD Module | 20x2 |
|
180.0x40.0x11.0 | 149.0x23.0 | 142.8x20.64 | 6H | white | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | ST7066U | ||
| 4x16 character LCD Module | DSTN(-) white side backlit monochrome LCD display | Arduino HTM1604B-41W-A5P | Character LCD Module | 16x4 |
|
87x60x10.4 | 62x27.2 | 56.2x20.8 | 6H | white | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | ST7066U | ||
| 2X16 Character LCD Module Display | DFSTN- with Side White Backlight-Arduino HTM1602-9C-41W-A5P | Character LCD Module | 16x2 |
|
100X42X13 | 80X20.5 | 76.37x16.02 | 12H | white | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | ST7066U | ||
| 2X16 Character LCD Module Display | DFSTN- with Side White Backlight-Arduino HTM1602-9-41W-A5P | Character LCD Module | 16x2 |
|
100.0x38.0x13.0 | 80.0x20.5 | 76.37x16.02 | 6H | white | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | ST7066U | ||
| 2X16 Character LCD Module Display | DFSTN- with Side White Backlight-Arduino HTM1602-8-41W-A5P | Character LCD Module | 16x2 |
|
84.0x44.0x13.5 | 61.0x15.8 | 56.2x11.5 | 6H | white | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | ST7066U | ||
| 2X16 Character LCD Module Display | DFSTN- with Side White Backlight-Arduino HTM1602A-41W-A5P | Character LCD Module | 16x2 |
|
80.0x36.0x13.1 | 64.5x15.8 | 55.8x10.64 | 6H | white | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | ST7066U | ||
| 1X16 character black background white text LCD display | DFSTN- | transflective display-Arduino HTM1601C-41W-A5P | Character LCD Module | 16x1 |
|
122.0x33.0x8.0 | 99.0x13.0 | 94.73x9.56 | 6H | white | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | ST7066U | ||
| 1x16 character LCD monochrome display | DFSTN(-) black background with white backlight | Ardunio HTM-1601A-41W-A5P | Character LCD Module | 16x1 |
|
80.0x36.0x13.1 | 64.5x16.0 | 59.46x5.96 | 6H | white | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | ST7066U |
