產品搜尋
類型：TFT條形
顯示像素：135X240
外形尺寸(mm) ：17.60x31.0x1.65
VA尺寸(mm)：1.14
AA尺寸(mm) ：1.14
有效尺寸mm：14.8635x24.9120
應用：智能家居
視角：IPS全視角
背光/亮度：500cd/m2
引腳：FPC-15PIN
接口方式：MIPI
特殊說明：抗靜電ESD 8KV
工作溫度：-20~70℃
供電電壓：2.8V
驅動芯片：JD9852

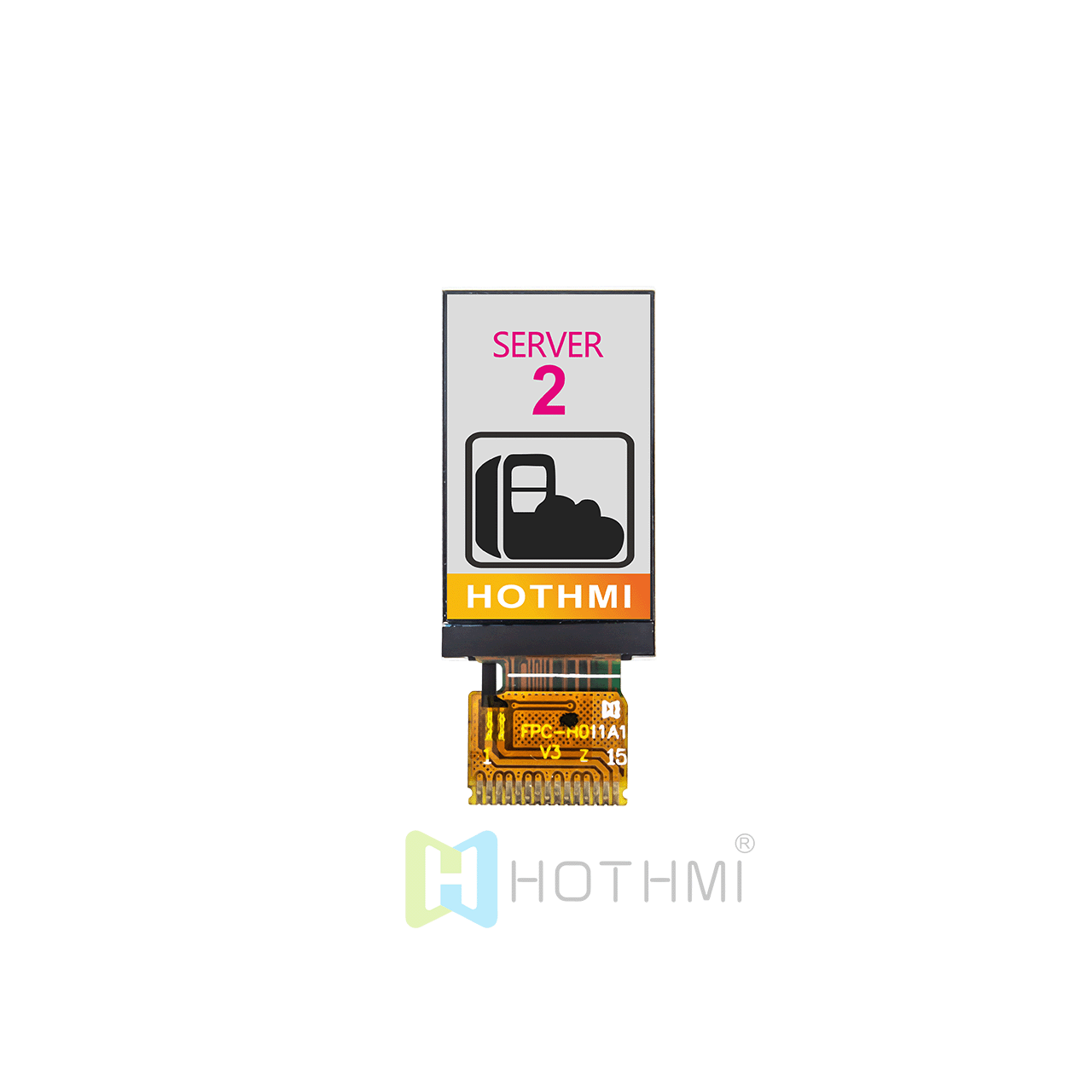

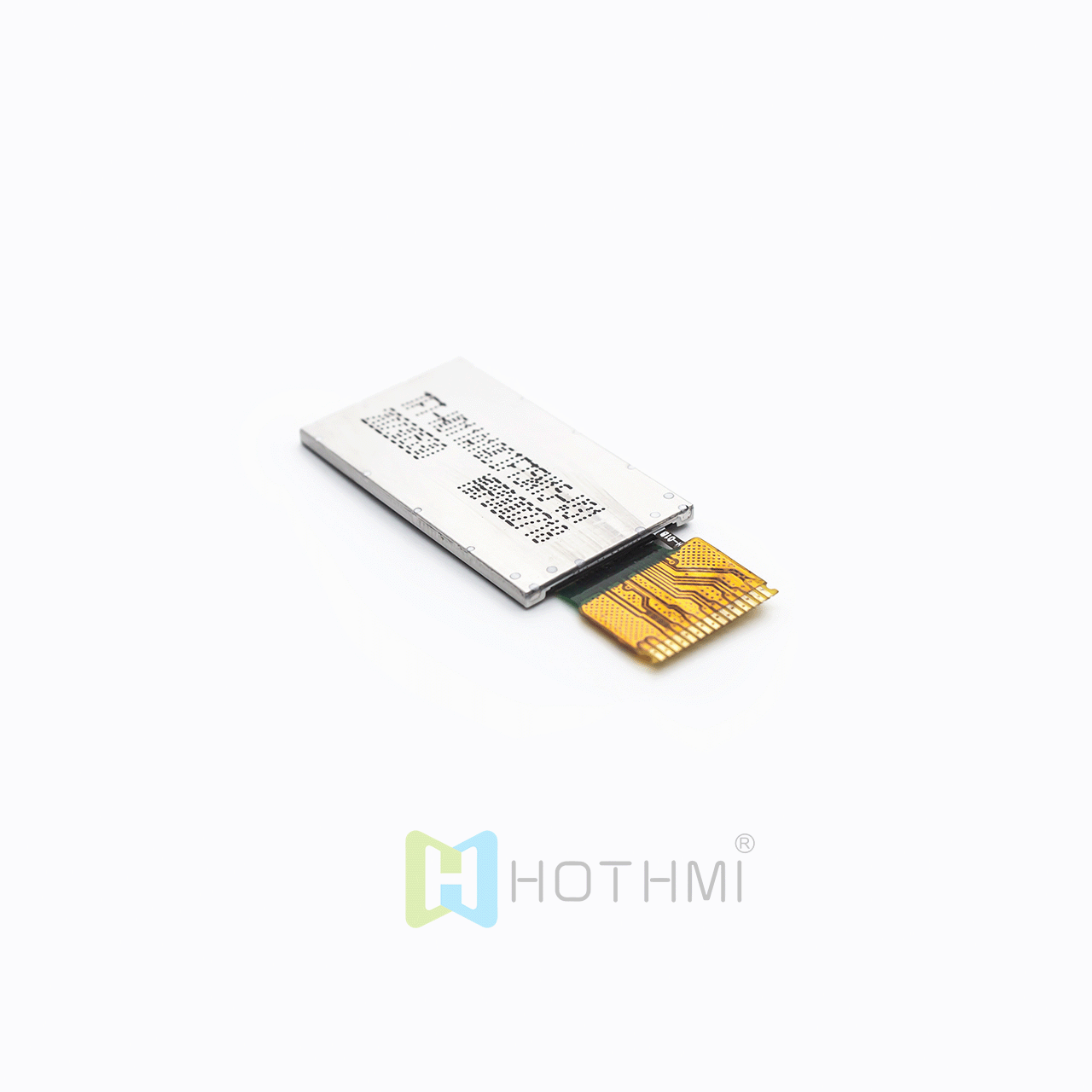

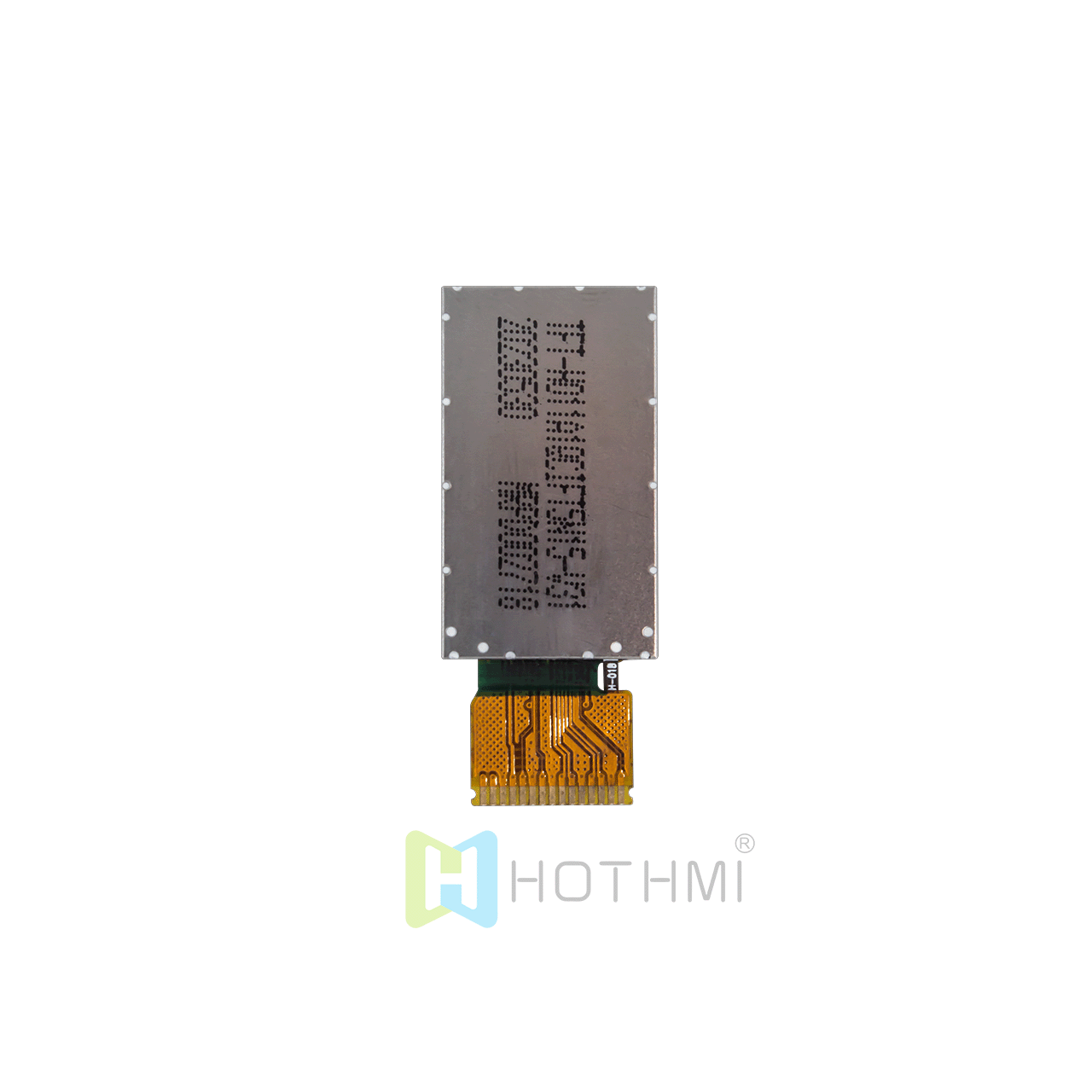

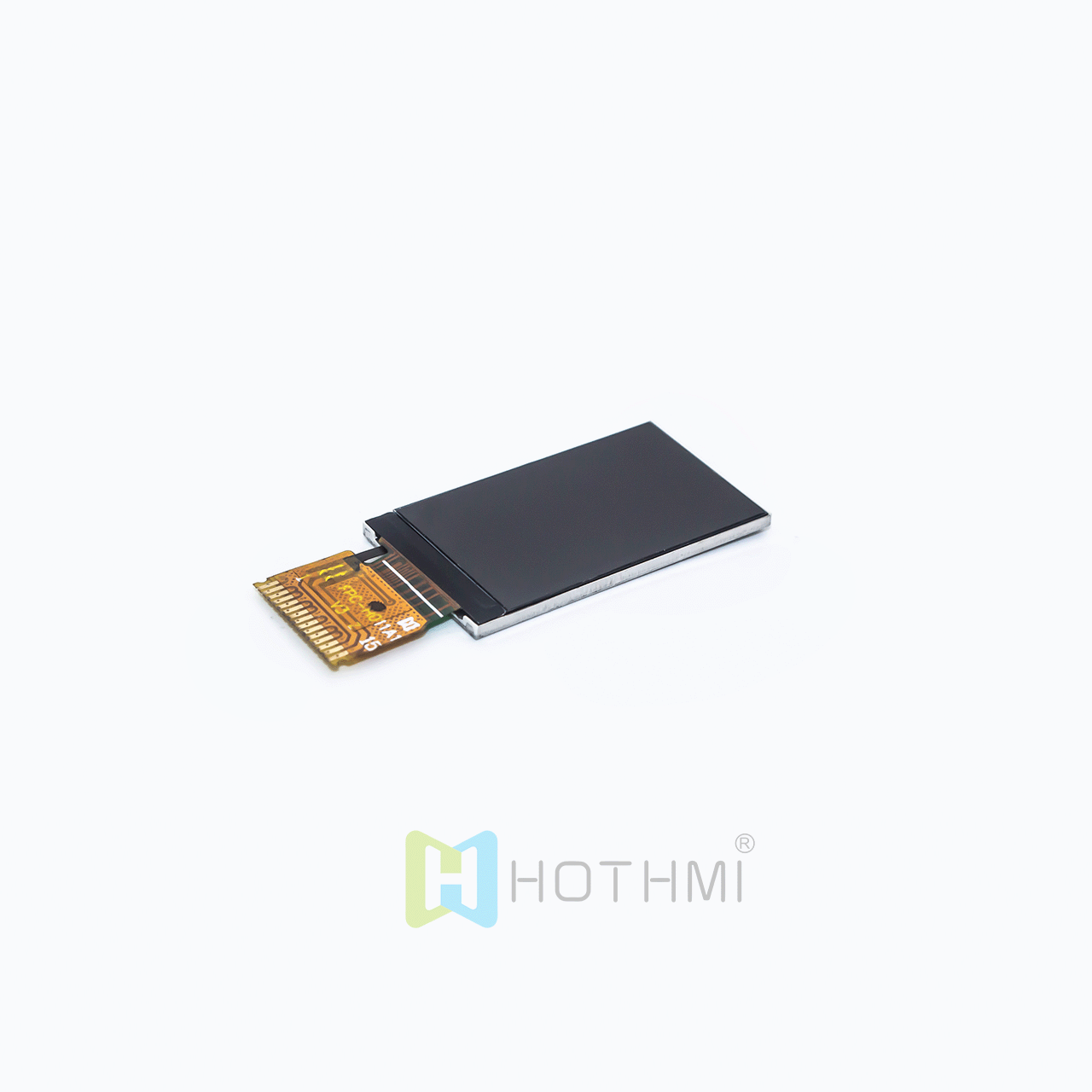

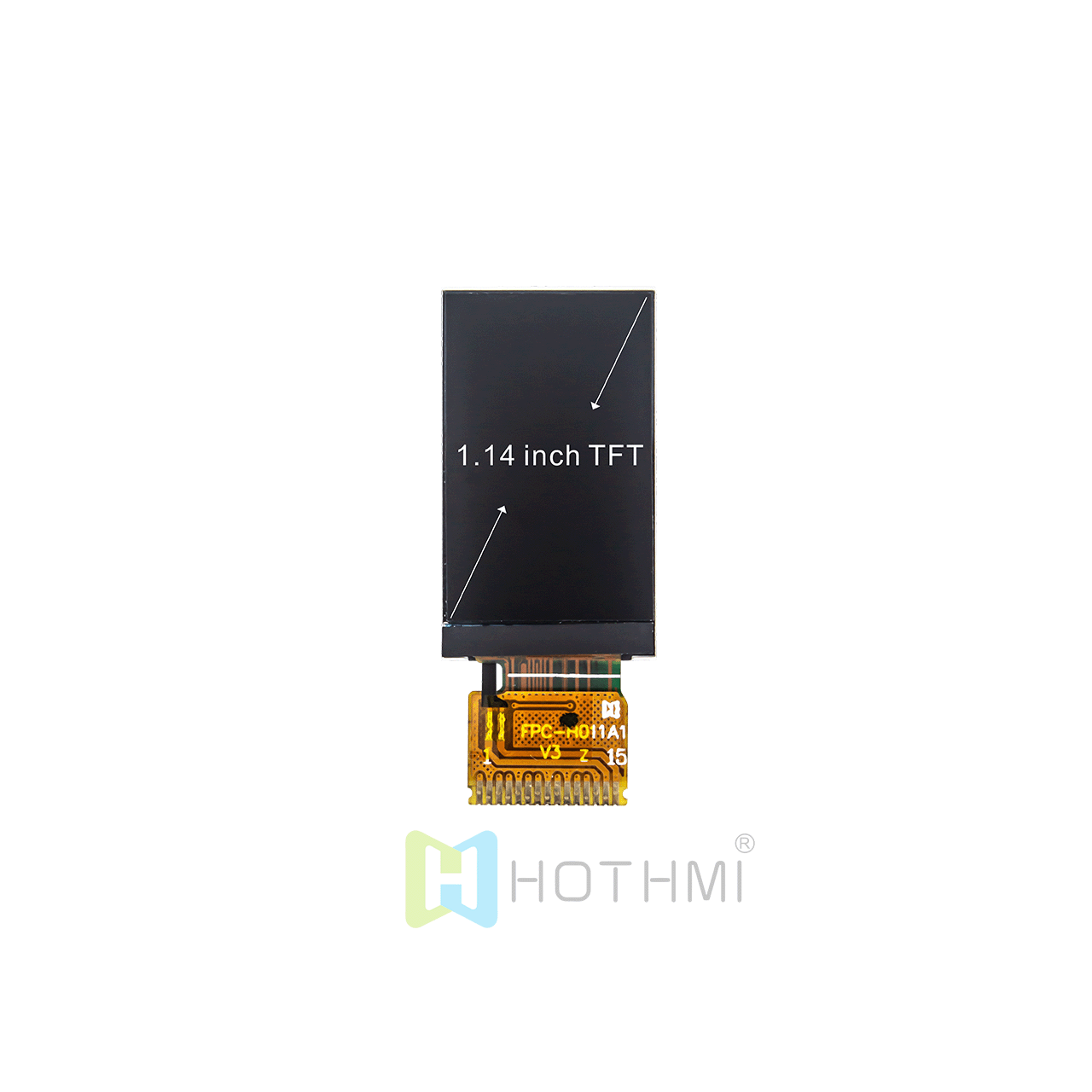

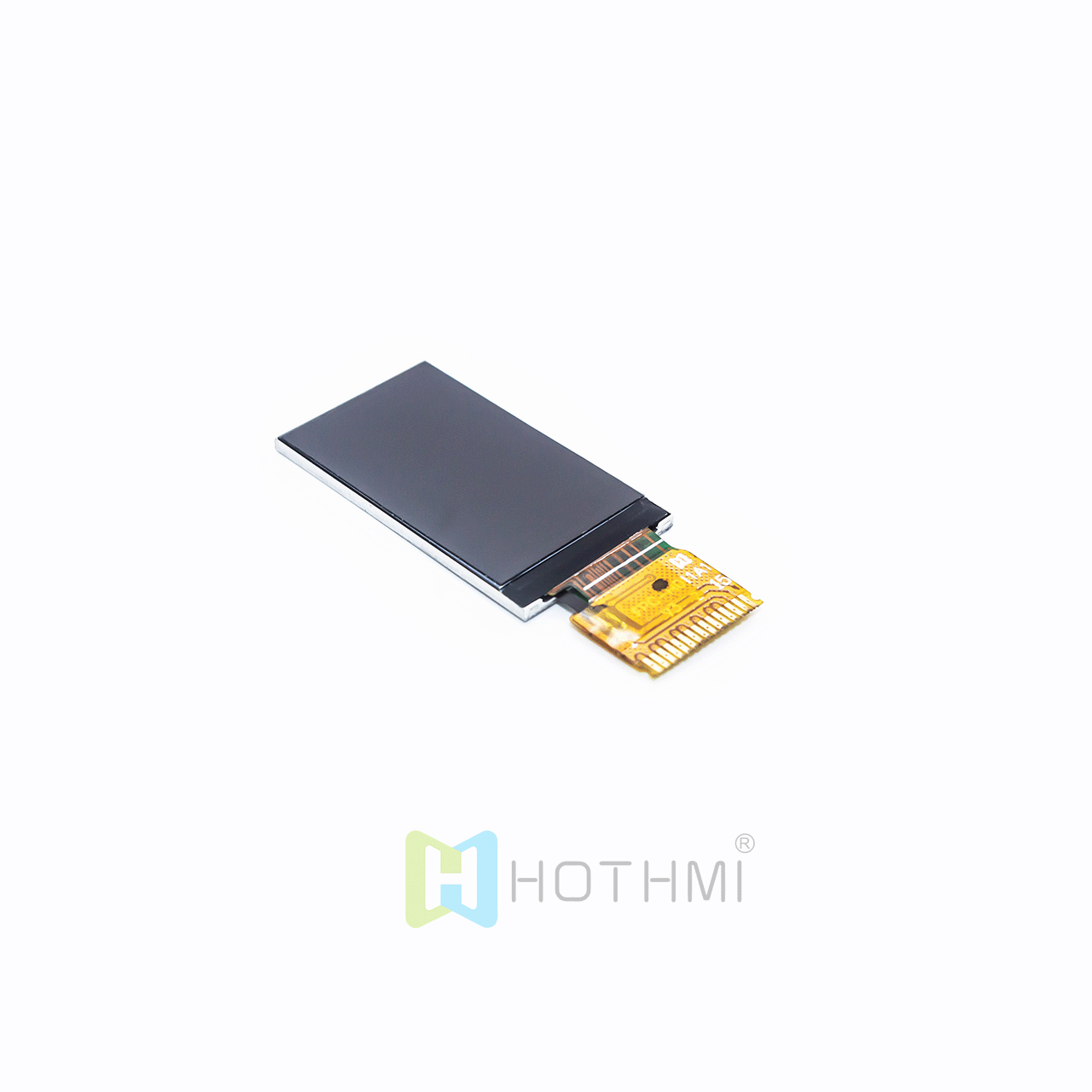

TFT-H011A1QCIFT5N15 is a 1.14-inch IPS TFT bar LCD screen with a resolution of 135x240, built-in JD9852 controller, optional touch screen, high picture quality, IPS wide viewing angle, MIPI interface, 65K/262K true color, FPC connection (optional connector), 1.8V~2.8V voltage, and supports vertical display. All materials meet environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for 8051 PIC, AVR, ARDUINO, ARM, Raspberry Pi, Android motherboard, RK motherboard and other single-chip development platforms.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections |
Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals. |
Cover Glass: Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris. |
