Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  7.8英寸 400x1280彩色I(xiàn)PS TFT 液晶顯示屏/超高亮度廣角TFT LCD/陽光下可視 TFT-H078A02ZAINVTN40
  • Model : 7.8-inch 400x1280 PS TFT LCD / ultra-high brightness wide-angle TFT LCD / sunlight visible TFT-H078A02ZAINVTN40

    Product type:IPS full-viewing angle TFT display

    Show contents:400x1280 px

    Outline size(mm) :208.78X67.8X4.7

    Size of View Window(mm):7.8

    Display size(mm) :7.8

    Effective size(mm):190.08X59.4

    Product application:industrial control systems, portable electronic devices

    Visual angle:IPS

    Backlight type or brightness:2000cd/m2

    Connection PIN Number:FPC-40 pin

    Interface mode:SPI+LVDS

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:+3.3 V

    Driver chip model:NV3051

    PDF download
Product description

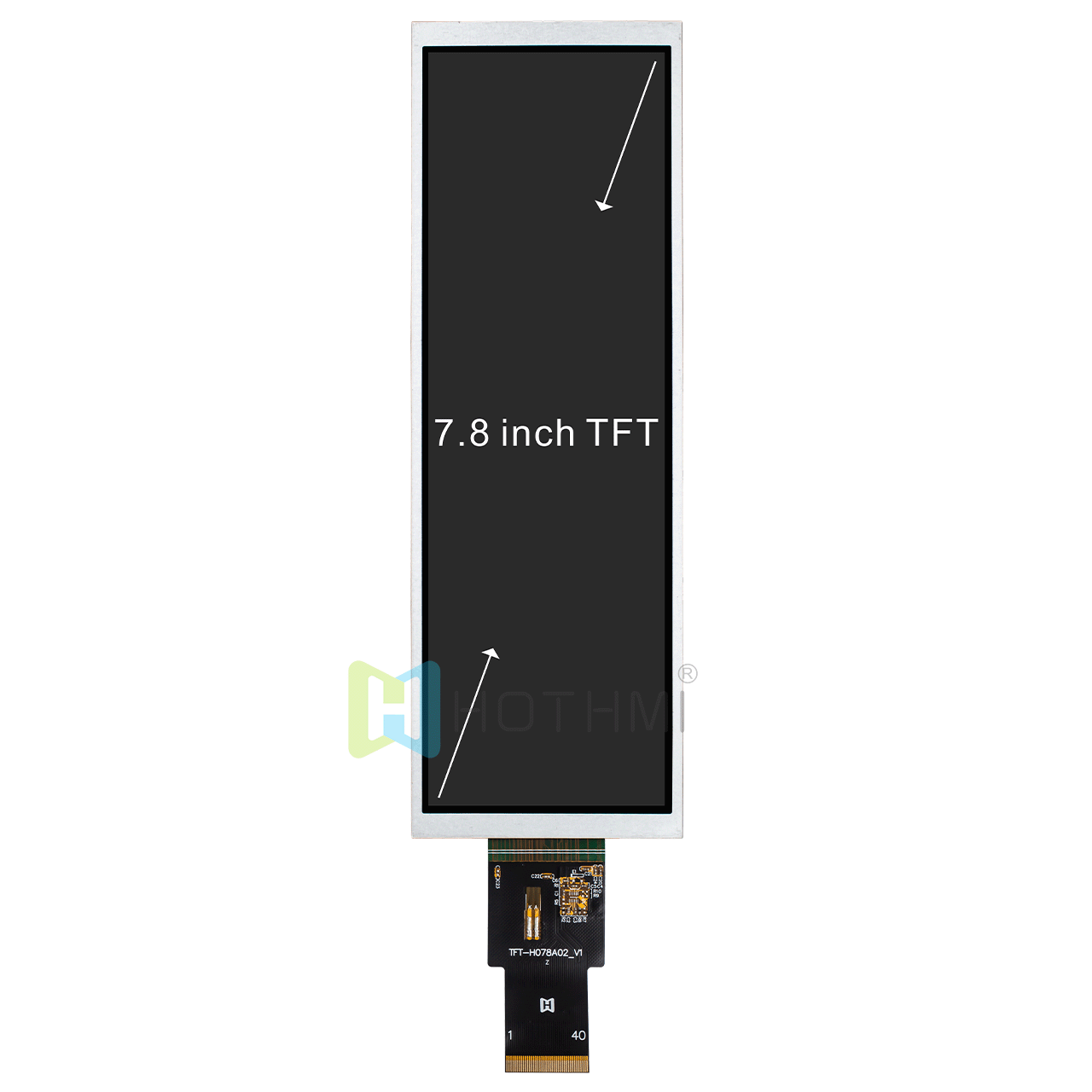

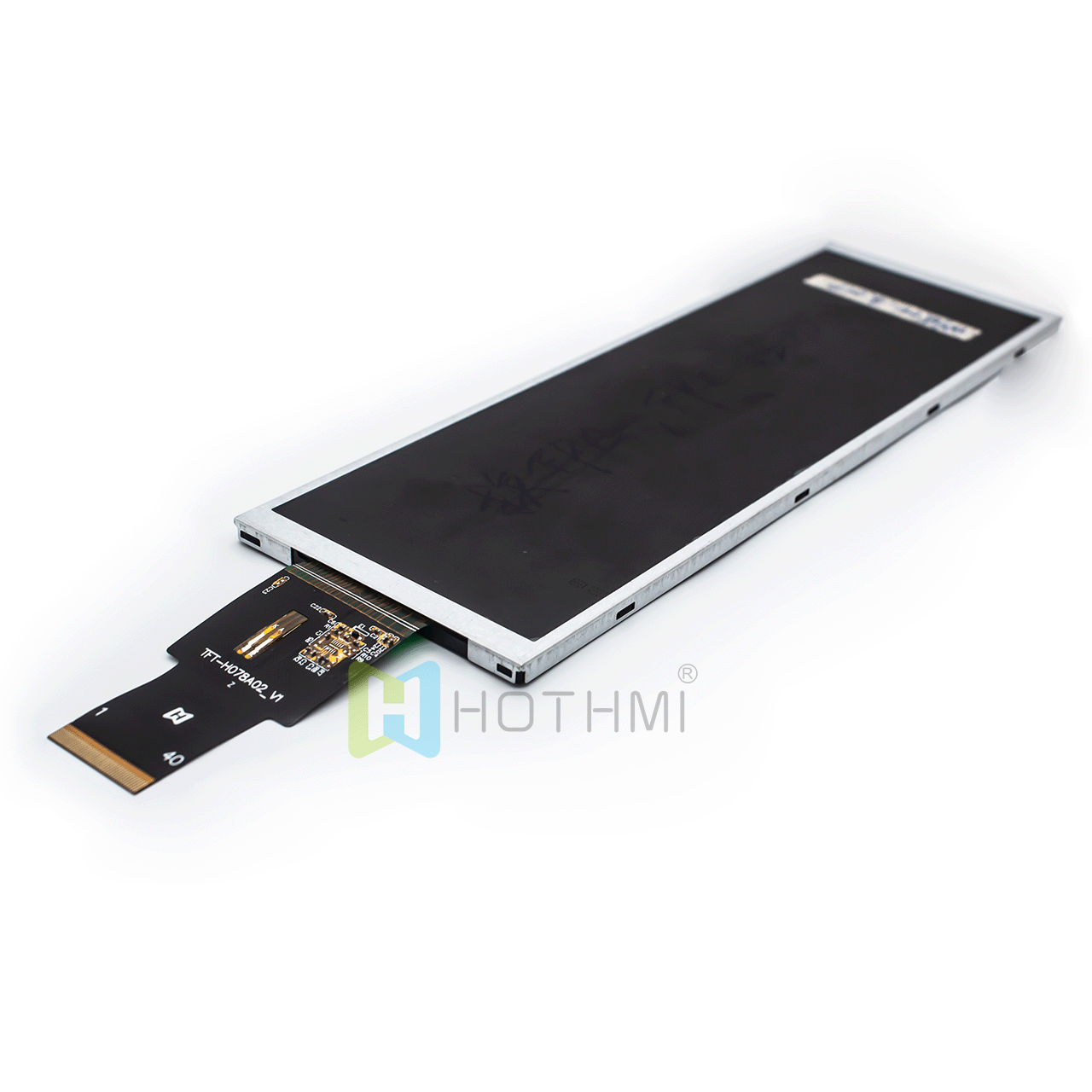

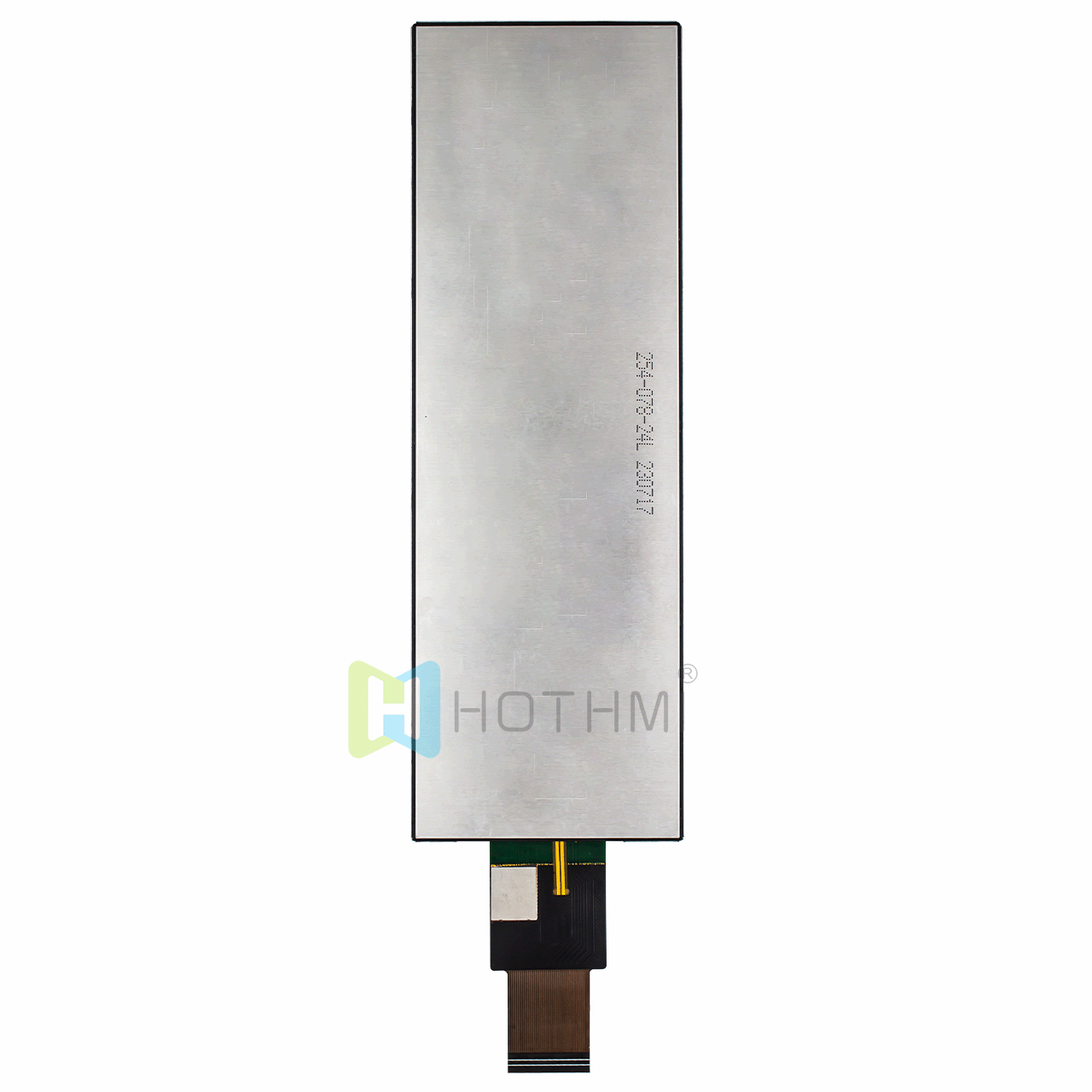

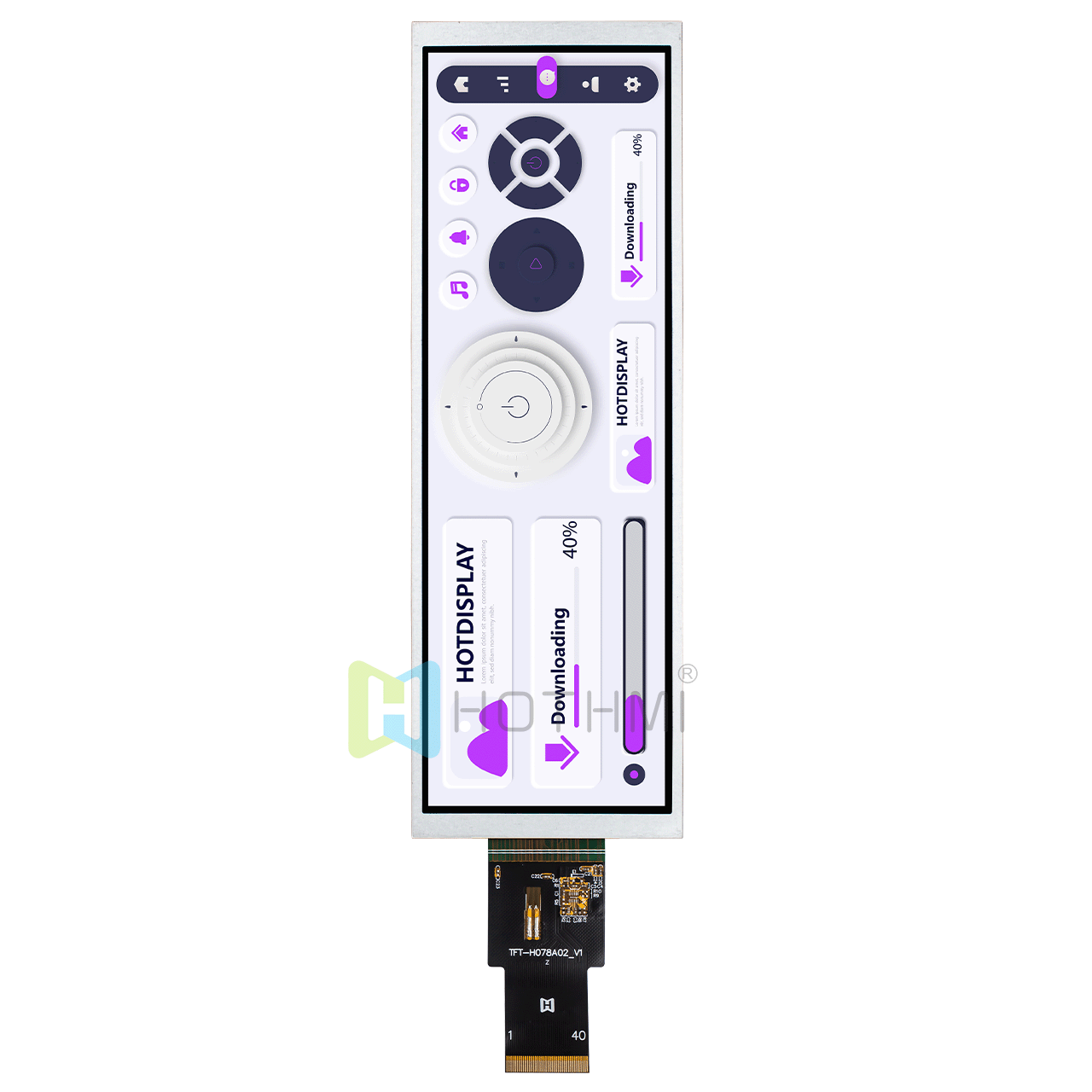

7.8-inch 400x1280 resolution color display / IPS TFT LCD / SPI+LVDS interface / NV3051 controller / ultra-high brightness wide-angle TFT LCD / sunlight visible

7.8-inch 400x1280 resolution color display / IPS TFT LCD / SPI+LVDS interface / NV3051 controller / wide-angle TFT LCD is an 8-inch IPS TFT long-bar LCD display with a resolution of 400x1280 pixels. The display has a high contrast ratio of 800:1, which can present deep blacks and vivid colors. This model has an ultra-high brightness of 2000 nits, and the display is still clearly visible in a sunny environment. IPS technology enables full viewing angles. TFT-H078A02ZAINVTN40 controller uses SPI+LVDS interface to transmit data with the display. This model is equipped with an optional capacitive touch screen, allowing users to interact with the display through bare finger touch and multi-touch input.

This is suitable for a wide range of applications, including industrial control systems, home automation, and portable electronic devices.
