Product type：IPS full-viewing angle TFT display
Show contents：400x1280 px
Outline size(mm) ：120.7X75.8X4.85
Size of View Window(mm)：5.0
Display size(mm) ：5.0
Effective size(mm)：108X64.8
Product application：industrial control systems, portable electronic devices
Visual angle：IPS
Backlight type or brightness：1000cd/M2
Connection PIN Number：FPC-40 pin
Interface mode：24-bit RGB I/F
Special instructions：Anti-static ESD 8KV
Working temperature：-30~80℃
Power supply voltage：+3.3 V
Driver chip model：ST7262(TFT),Atmel mXT640T(CTP)

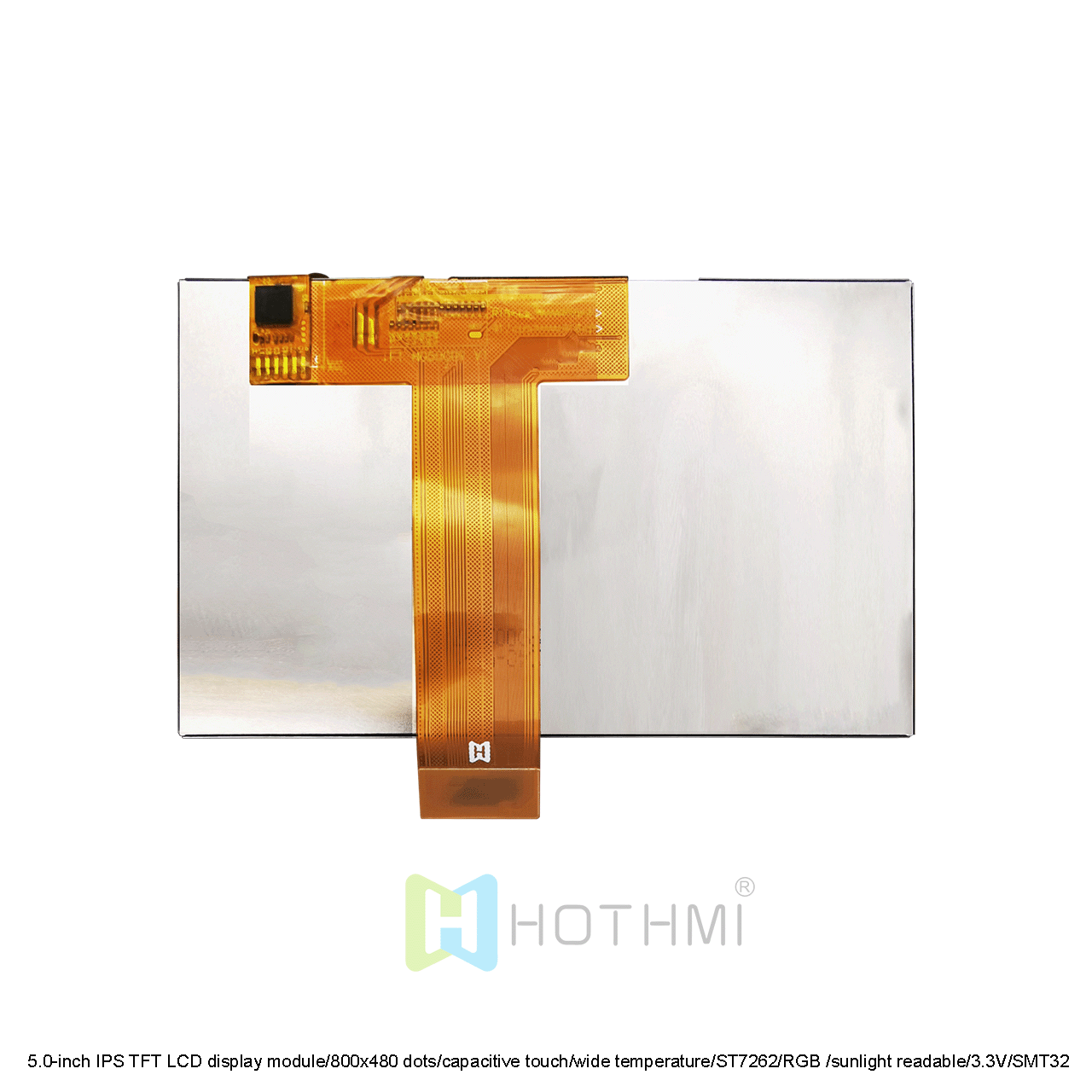

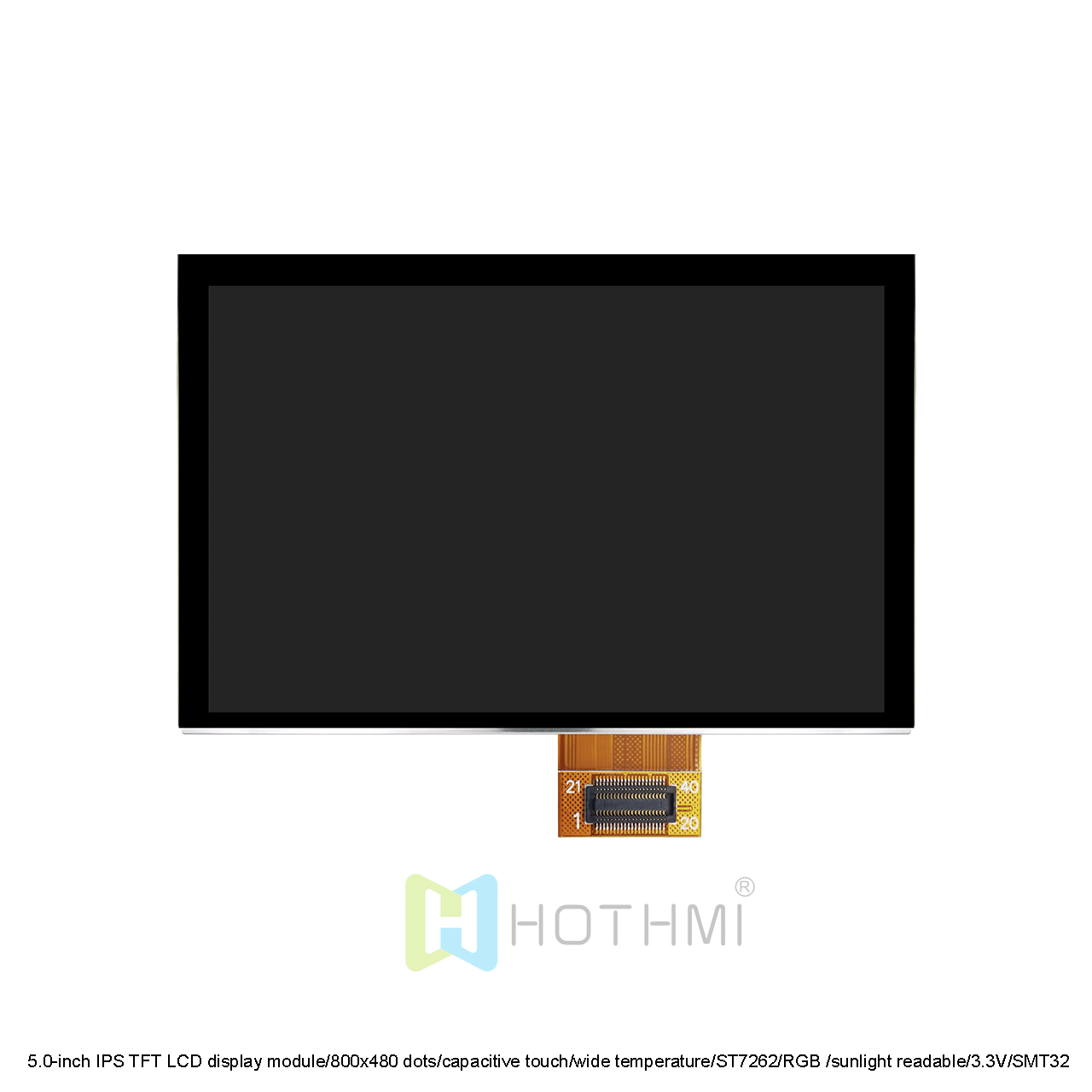

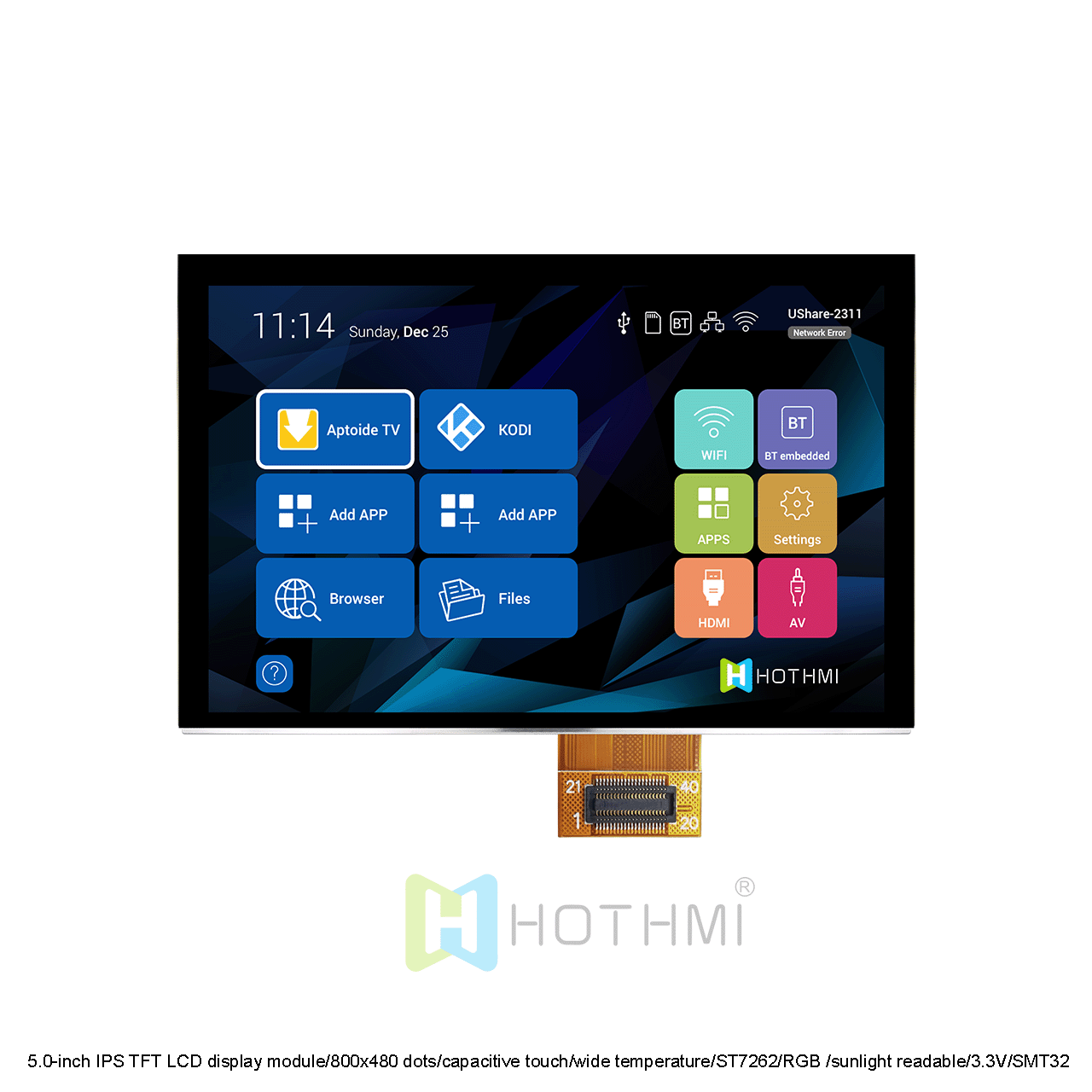

5.0-inch 800x480 resolution color TFT screen/IPS TFT LCD screen/RGB interface/ST7262 controller/high brightness TFT LCD/sunlight viewable/plug-in FPC is a 5.0-inch IPS TFT LCD display with a resolution of 800x480 pixels. The display has a high contrast ratio, capable of deep blacks and vivid colors. This model has a high brightness of 1000 nits, and the display is still clearly visible in a sunny environment. IPS technology enables full viewing angles. The TFT controller of the TFT-H050C09SVISTKC40 is the ST7262, with capacitive touch function, allowing users to interact with the display through bare finger touch and multi-touch input. The control chip of the capacitive touch screen is the Atmel mXT640T. 24-bit RGB I/F interface is used for data transmission with the display.
This is suitable for a wide range of applications, including industrial control systems, home automation and portable electronic devices.
