COG display: not only thin, but also low power consumption.
COG display is the first batch of Xinhongtai HOTLCD since its successful development and production in 2004. It has been the main product of the company for 15 years and is also a kind of LCD module favored by many customers.
So far, hundreds of standard COG displays ranging from 64*48 dot matrix to 320*240 dot matrix have been developed for customers to choose. In particular, there are more than one hundred different sizes of 128*64 dot matrix.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Point spacing mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5.5-inch color display/IPS full viewing angle/high brightness capacitive touch TFT TFT-H055A61HDINVKC30 | TFT | 720X1280 |
|
76.0x140x0.7 | 5.5“ | 5.5 | IPS | white backlight 1000cd/M2 | FPC-50pin | MIPI 4L | 防靜電ESD 8KV | -20~70℃ | +3.3 V | NV3051F<TFT>,GT911<CTP> | ||

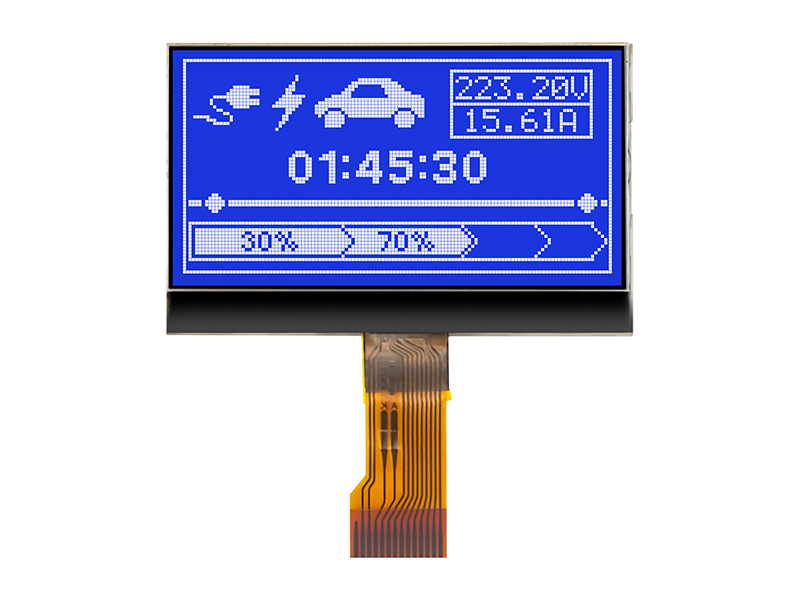

| 1.1 inch 128X64 Mini COG LCD Graphic Display/STN-Blue Background White Characters HTG12864-55-25W-A3P | COG Graphic LCD | 128X64 |
|
28.55x20.1x1.7 | 26.15x13.9 | 1.1 | 0.18x0.18 | 6H | STN- white backlight | FPC-12PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7565R | |
| 1.1 inch 128x64 Graphic Mini LCD Graphic Display/FSTN+RGB Backlight/ST7565R /Arduino HTG12864-55-35S-A3P | COG Graphic LCD | 128X64 |
|
28.55x20.1x1.7 | 26.15x13.9 | 1.1 | 0.18x0.18 | 6H | FSTN+ RGB BL | FPC-12PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7565R | |

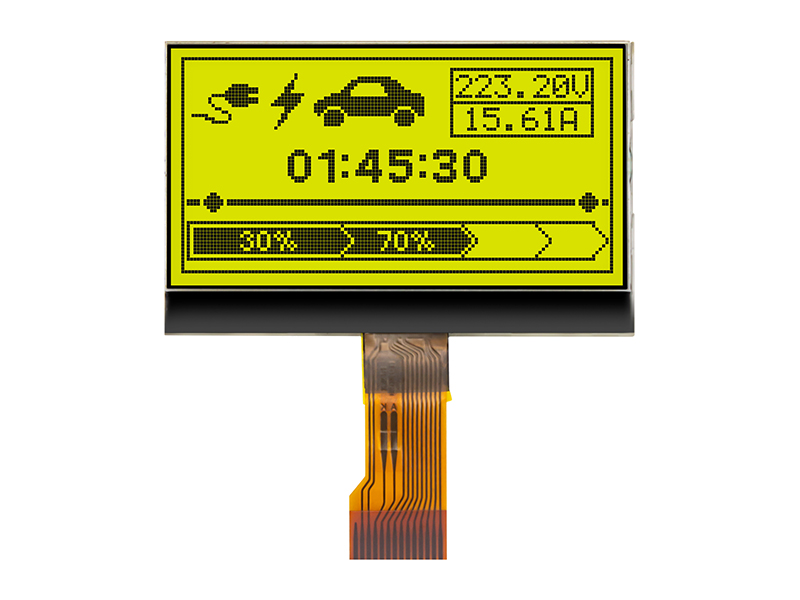

| 1.1 inch yellow-green 128x64 Graphic COG/STN+Gray/STN+/ST7565R Controller/Arduino HTG12864-55-11Y-A3P | COG Graphic LCD | 128X64 |
|
28.55x20.1x1.7 | 26.15x13.9 | 1.1 | 0.18x0.18 | 6H | STN(+) Yellow-green | FPC-12PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7565R | |
| 1.1 inch 128x64 Mini COG Graphic Display/DFSTN-/ST7565R Controller/Arduino HTG12864-55-11W-A3P | COG Graphic LCD | 128X64 |
|
28.55x20.1x1.7 | 26.15x13.9 | 1.1 | 0.18x0.18 | 6H | STN+white backlight | FPC-12PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7565R | |

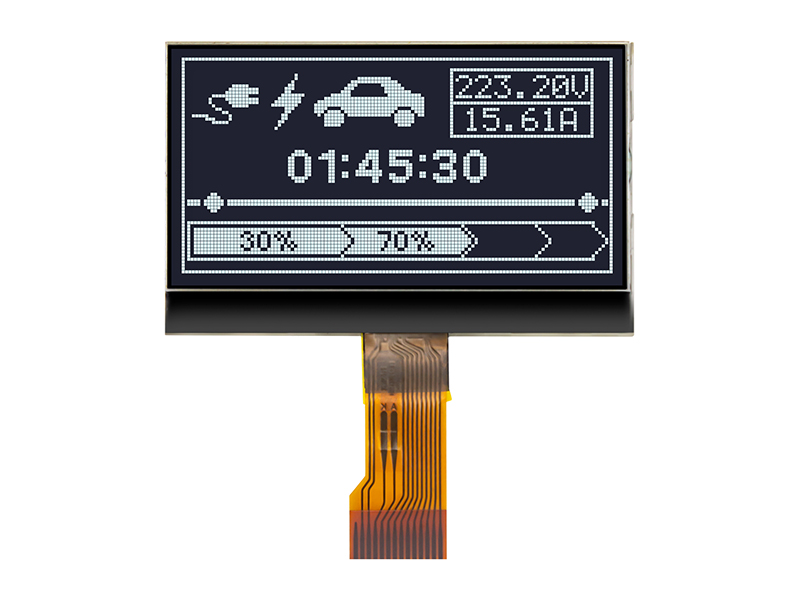

| 1.1 inch 128x64 graphic COG/128X64 mini graphic display/DFSTN-/ST7565R controller/Arduino HTG12864-55-41W-A3P | COG Graphic LCD | 128X64 |
|
28.55x20.1x1.7 | 26.15x13.9 | 1.1 | 0.18x0.18 | 6H | DFSTN- white BL | FPC-12PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7565R | |

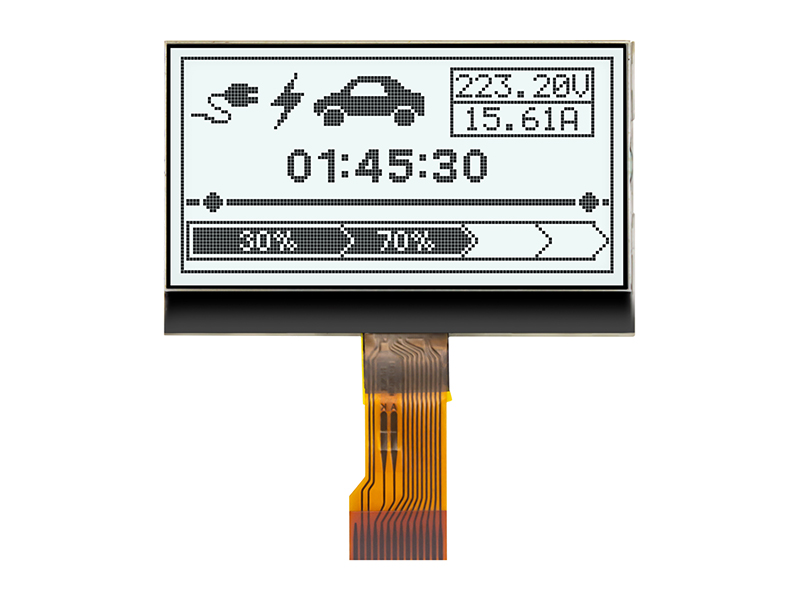

| 1.1 inch Graphic 128x64 COG/ Mini Graphic Display/FSTN+ Gray/ST7565R/Arduino HTG12864-55-31W-A3P | COG Graphic LCD | 128X64 |
|
28.55x20.1x1.7 | 26.15x13.9 | 1.1 | 0.18x0.18 | 6H | FSTN+white backlight | FPC-12PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7565R | |
| 1.1 inch 128X64 Mini Graphic Display/STN+ Y-G Backlight/ST7565R/Arduino HTG12864-55-01Y-A3P | COG Graphic LCD | 128X64 |
|
28.55x20.1x1.7 | 26.15x13.9 | 1.1 | 0.18x0.18 | 6H | STN(+) Yellow-green | FPC-12PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7565R | |
| 3.1-inch 128x64 Graphic COG LCD with Red, Green and Blue Backlight / FSTN+ / Arduino HTG12864-127-35S-20C10-V01 | COG Graphic LCD | 128X64 |
|
87.6x50.4x0.3 | 70.0x37.0 | 3.1 | 0.51x0.51 | 6H | FSTN+ RGB | FPC-20PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7565R | |
| 3.1 inch 128x64 Graphic COG Grey Background Blue COG / STN- / Controller / Arduino HTG12864-127-25W-20C10-V01 | COG Graphic LCD | 128X64 |
|
87.6x50.4x0.3 | 70.0x37.0 | 3.1 | 0.51x0.51 | 6H | STN- white backlight | FPC-20PIN | MCU | Anti-static ESD 8KV | 3.3V | ST7565R |
