COG display: not only thin, but also low power consumption.
COG display is the first batch of Xinhongtai HOTLCD since its successful development and production in 2004. It has been the main product of the company for 15 years and is also a kind of LCD module favored by many customers.
So far, hundreds of standard COG displays ranging from 64*48 dot matrix to 320*240 dot matrix have been developed for customers to choose. In particular, there are more than one hundred different sizes of 128*64 dot matrix.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Point spacing mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

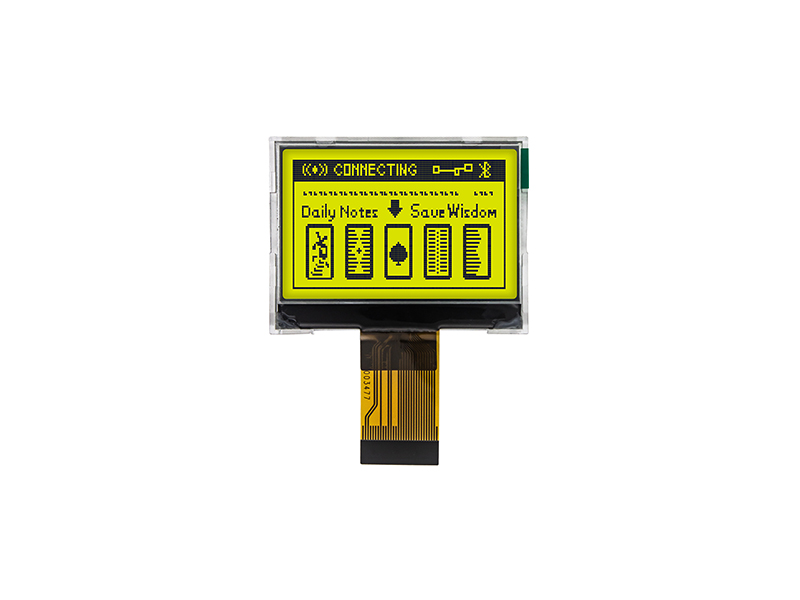

| 3.1 inch 128x64 Graphic COG LCD / Yellow-Green Backlight COG / STN+Gray / Arduino HTG12864-127-11Y-20C10-V01 | COG Graphic LCD | 128X64 |
|
87.6x50.4x0.3 | 70.0x37.0 | 3.1 | 0.51x0.51 | 6H | STN(+) Yellow-green | FPC-20PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7565R | |

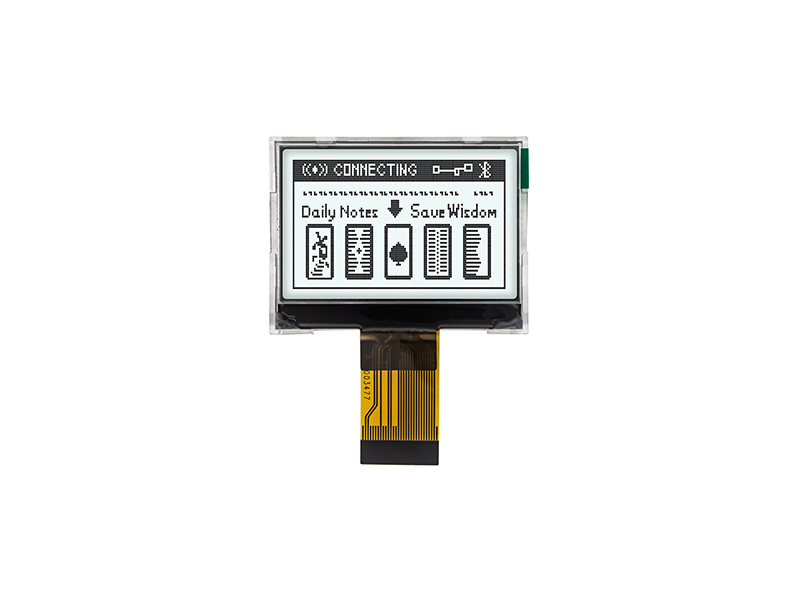

| 3.1 inch 128x64 Graphic COG LCD // STN+ / ST7565R Controller / Arduino HTG12864-127-11W-20C10-V01 | COG Graphic LCD | 128X64 |
|
87.6x50.4x0.3 | 70.0x37.0 | 3.1 | 0.51x0.51 | 6H | STN- white backlight | FPC-20PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7565R | |

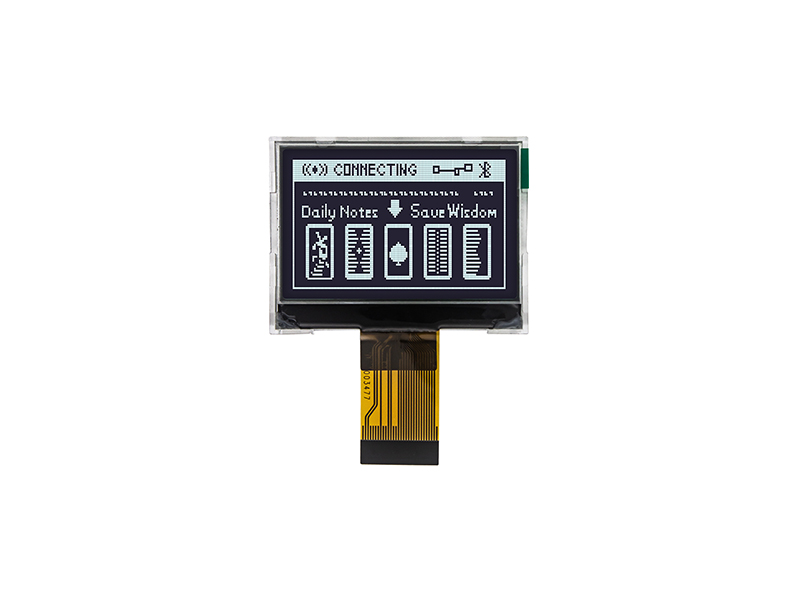

| 3.1 inch 128x64 Graphic COG LCD Display/DFSTN-/ST7565R Controller/Arduino HTG12864-127-41W-20C10-V01 | COG Graphic LCD | 128X64 |
|
87.6x50.4x0.3 | 70.0x37.0 | 3.1 | 0.51x0.51 | 6H | DFSTN- white | FPC-20PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7565R | |

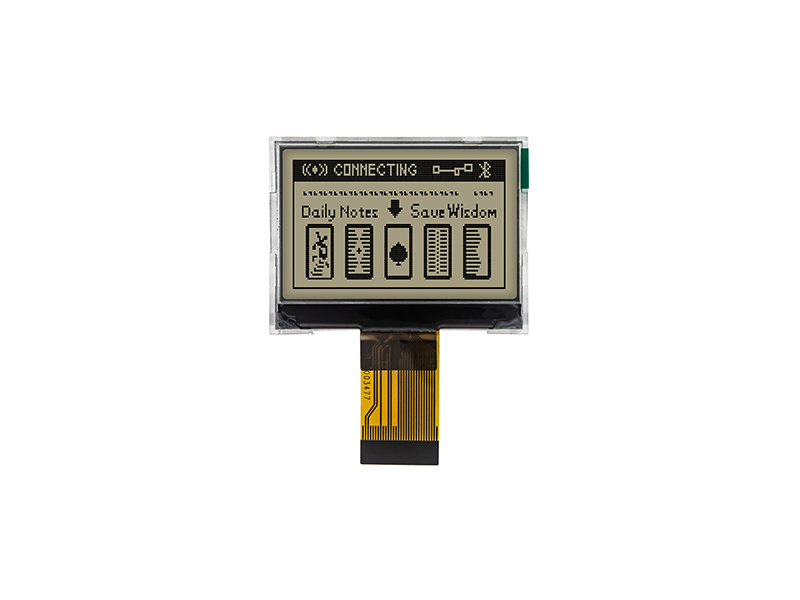

| 3.1-inch 128x64 Graphic COG LCD White Background Grey Graphic COG/Arduino HTG12864-127-31W-20C10-V01 | COG Graphic LCD | 128X64 |
|
87.6x50.4x0.3 | 70.0x37.0 | 3.1 | 0.51x0.51 | 6H | FSTN+ white backlight | FPC-20PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7565R | |
| 3.1-inch 128x64COG LCD DisplaySTN+/Y-G Backlight HTG12864-127-01Y-20C10-V01 | COG Graphic LCD | 128X64 |
|
87.6x50.4x0.3 | 70.0x37.0 | 3.1 | 0.51x0.51 | 6H | STN(+) Yellow-green | FPC-20PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7565R | |
| 1.3 inch round 128x128 dot matrix COG display | STN+ | yellow-green backlight | IST7920 | Arduino/HTG128128-IST7920-11Y | COG Graphic LCD | 128X128 |
|
32.67*35.6*2.00 | 28.67*28.67 | 1.3 | 0.20*0.20 | 6H | STN(+) Yellow-green | FPC-14pin | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3 V | IST7920 | |
| 1.3-inch 128*128 circular LCD display/STN+/gray background with blue characters/IST7920 | Arduino HTG128128-IST7920-11W | COG Graphic LCD | 128X128 |
|
32.67*35.6*2.00 | 28.67*28.67 | 1.3 | 0.20*0.20 | 6H | STN+ White backlight | FPC-14pin | SPI | Anti-static ESD 8KV | -20~70℃ | 3.3V | IST7920 | |
| 1.3 inch black round 128x128 COG display |DFSTN- /IST7920/Arduino HTG128128-IST7920-41W | COG Graphic LCD | 128X128 |
|
32.67*35.6*2.00 | 28.67*28.67 | 1.3 | 0.20*0.20 | 6H | DFSTN- white BL | FPC-14pin | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3 V | IST7920 | |
| 1.3 inch round 128x128 dot matrix graphic COG display | FSTN+ | | IST7920 | Arduino HTG128128-IST7920-31W | COG Graphic LCD | 128X128 |
|
32.67*35.6*2.00 | 28.67*28.67 | 1.3 | 0.20*0.20 | 6H | FSTN+ White backlight | FPC-14pin | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3 V | IST7920 | |
| 1.3 inch round 128x128 yellow-green dot graphic COG display/STN+Y/G backlight /IST7920 /Arduino HTG128128-IST7920-01Y | COG Graphic LCD | 128X128 |
|
32.67*35.6*2.00 | 28.67*28.67 | 1.3 | 0.20*0.20 | 6H | STN(+) Yellow-green | FPC-14pin | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3 V | IST7920 |
